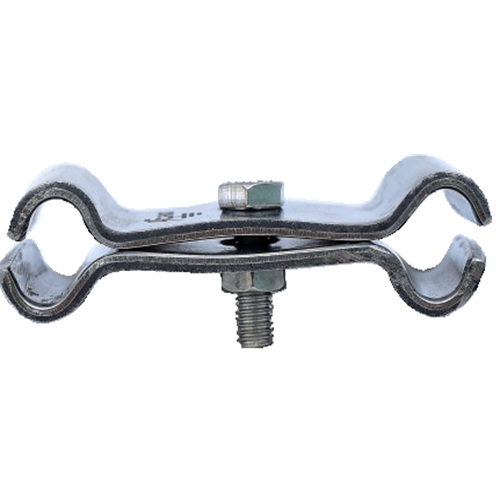

Parallel Connector - SS
Parallel connector made of stainless steel is used to connect two parallel conductors in electrical or lightning protection systems, providing a durable and corrosion-resistant connection.

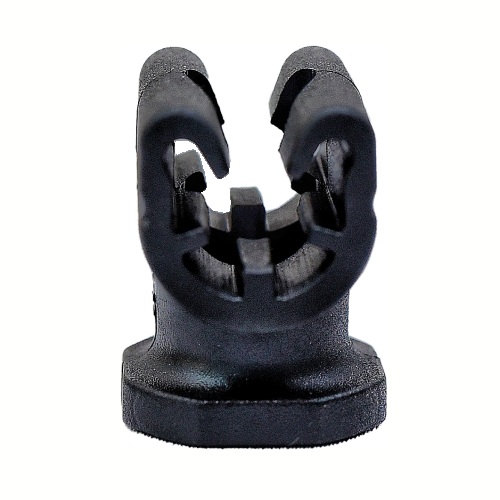

Polymide Conductor Holder
A conductor holding polyamide (nylon) clamp is used to secure conductors in place while providing electrical insulation. Polyamide offers durability and resistance to environmental conditions, making it suitable for various applications.

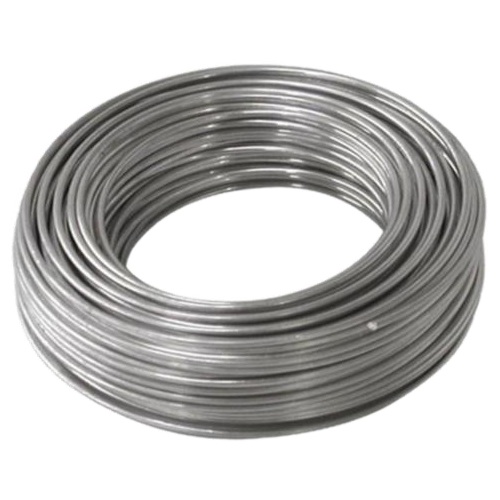

Aluminium Conductor
| Aluminium Conductor | ||
|---|---|---|
| Diameter (mm) | Ø8 mm | VALC080Z |
| Ø9.5 mm | VALC095Z | |
| Cross section mm² | 50 & 70 mm² | |
| Standard | IS-IEC 62305 / 62561 | |
| Impulse Current | 100 kA 10/350 µs | |
| Purity | 99.50% | |
| Grade | Half Hard EC Grade | |
| Electrical Resistivity Test | 0.027 Ω-m | |
| Usage | Horizontal Air terminal & down conductor for Lightning protection | |

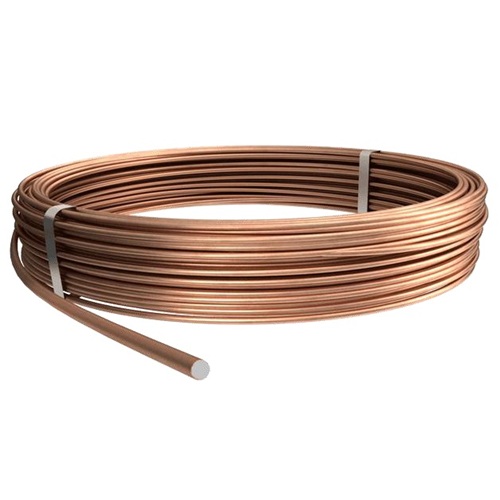

Copper Bonded Conductor
| Copper Bonded Conductor | ||
|---|---|---|
| Diameter (mm) | Ø8 mm | VCBC08Z |
| Ø10 mm | VCBC10Z | |
| Cross section mm² | 50 & 78 mm² | |
| Standard | IS-IEC 62305 / 62561 | |
| Impulse Current | 100 kA 10/350 µs | |
| Microns (µm) | 70, 120 & 254 (µm) | |
| Copper Purity | 99.9% (IS EN 15079:2015) | |
| Usage | Horizontal Air terminal & down conductor for Lightning protection | |

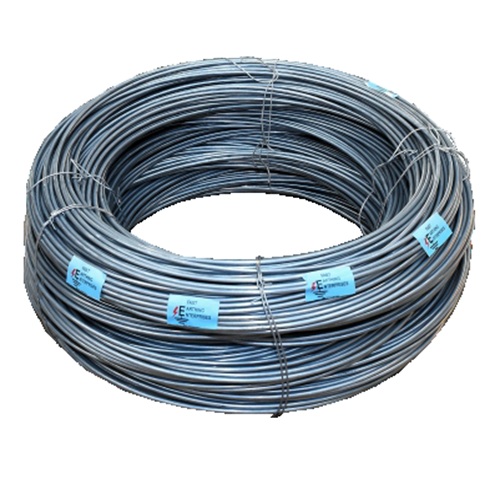

SS Conductor
| SS Conductor | ||
|---|---|---|
| Diameter (mm) | Ø8 mm | VSSC08Z |
| Ø10 mm | VSSC10Z | |
| Cross section mm² | 50 & 78 mm² | |
| Standard | IS-IEC 62305 / 62561 | |
| Grade | 304, 304L, 316 & 316L | |
| Usage | Horizontal Air terminal & down conductor for Lightning protection | |

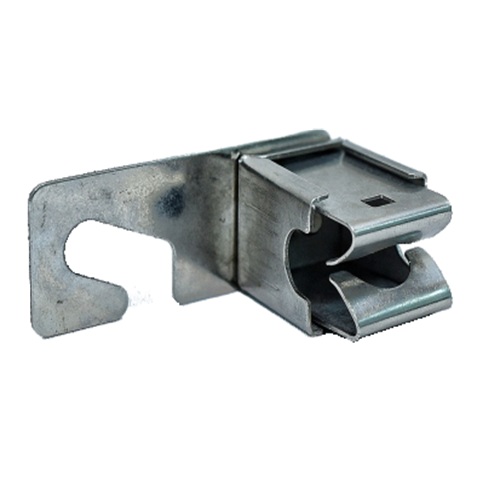

Conductor Holding Clamp - SS
Conductor holding clamp is used to secure and support conductors in electrical or lightning protection systems, ensuring they stay in place and maintain a stable connection.

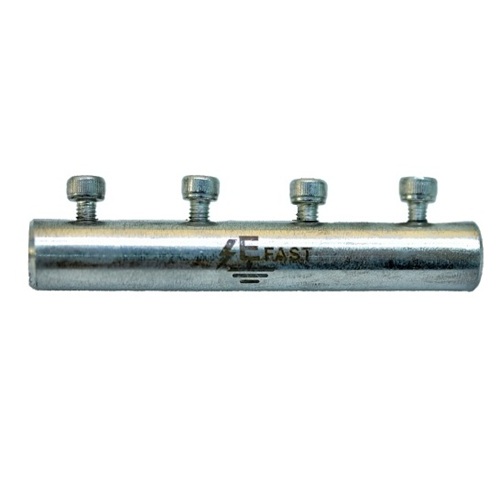

Straight Splicer - SS
A straight splicer for an aluminum expansion piece is a type of connector used to join two lengths of aluminum expansion pieces in a straight line.

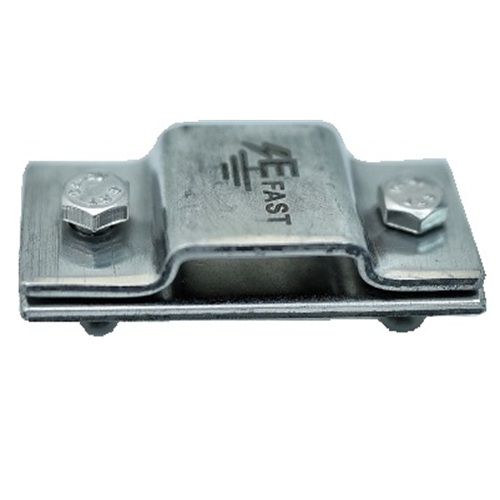

Saddle for flat/strip SS
A saddle for flat/strip stainless steel is used to secure flat or strip conductors to surfaces in electrical or lightning protection systems, providing a stable and corrosion-resistant attachment point.

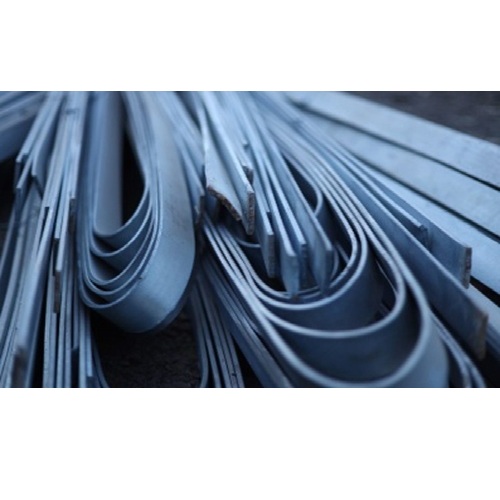

Hot Dip GI Flat/Strip
Flat strip holders are used for fixing flat conductors via a slotted clamp.

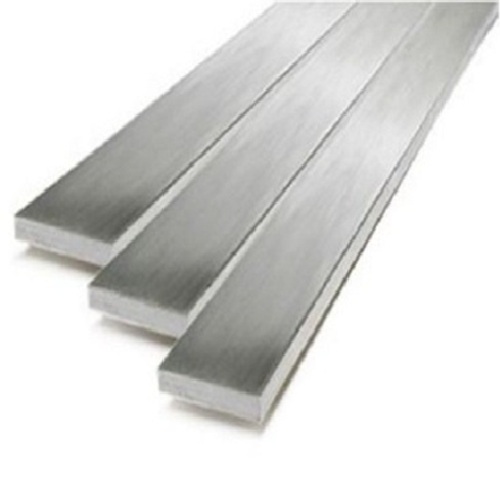

Aluminium flat/strip
Aluminium flat strip is widely used in electrical and structural applications, especially for grounding and lightning protection due to its lightweight nature and excellent conductivity.

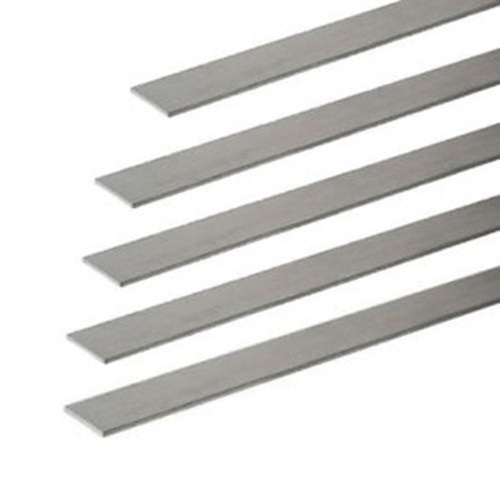

Aluminium for Flat/strip
Aluminium flat strip is used in electrical systems to create conductive pathways. It is chosen for its lightweight properties, good conductivity, and resistance to corrosion.

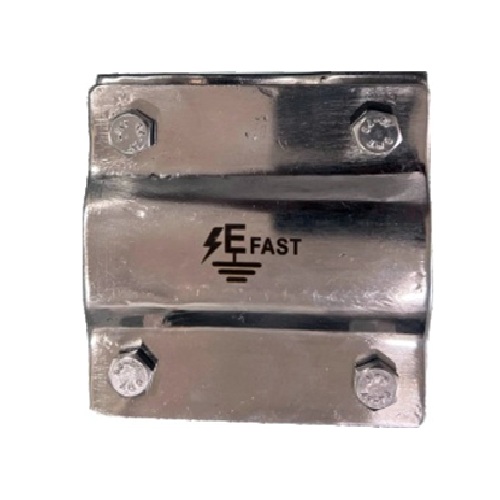

TXL connector (Flat to flat) suitable for flat/strip SS
TXL connector flat-to-flat is used to join two flat conductors or wires in electrical systems, ensuring a secure and efficient connection. It is typically used where a low-profile, reliable connection is needed.

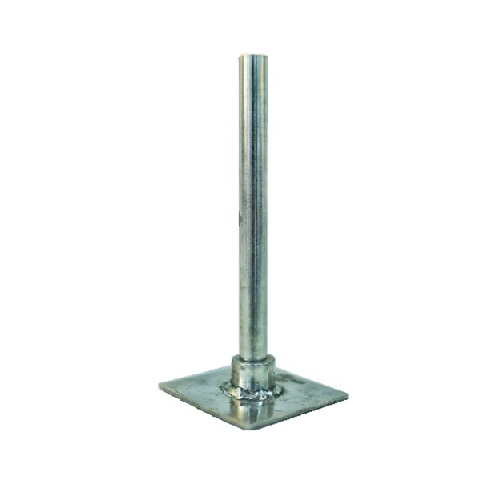

Earth Stud - SS
An earth stud made of stainless steel is used to create a secure grounding connection in electrical systems. It ensures durability and resistance to corrosion.

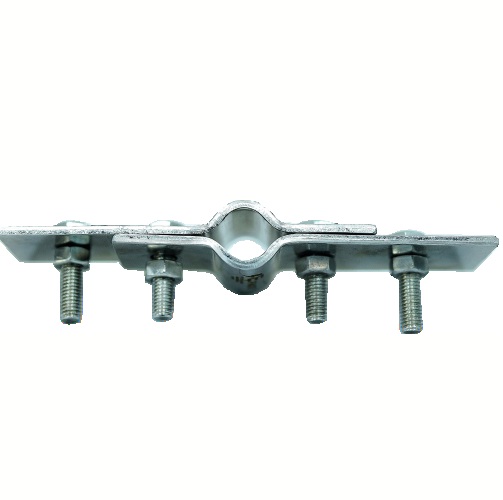

Universal Earth Clamp - SS
Universal earth clamps are used to securely attach grounding conductors to various surfaces or components. Their stainless steel construction ensures strength and corrosion resistance.

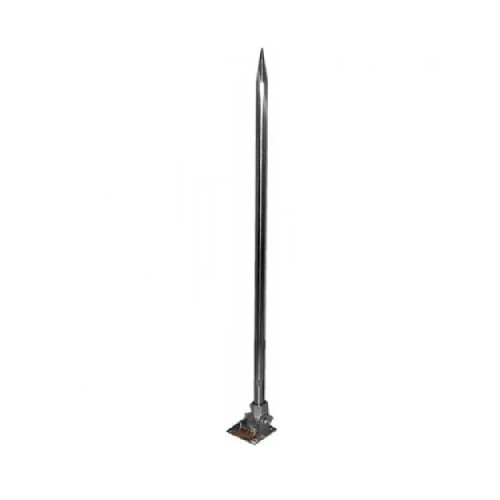

Air Terminal Rod
Air Terminal Lightning Rod is designed to provide protection to structures against physical damage from lightning strikes. It is a metal rod installed over a structure as the preferred point for a lightning strike.

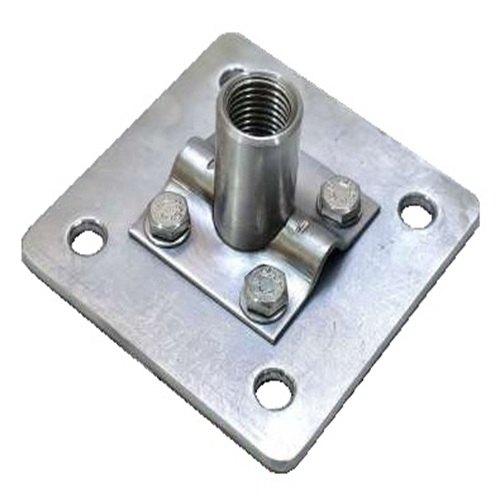

Air Termination Base - SS
Air termination bases are used for supporting air terminal rods onto flat roof surfaces and to accommodate round conductors and tape conductors for down conducting in lightning protection systems.

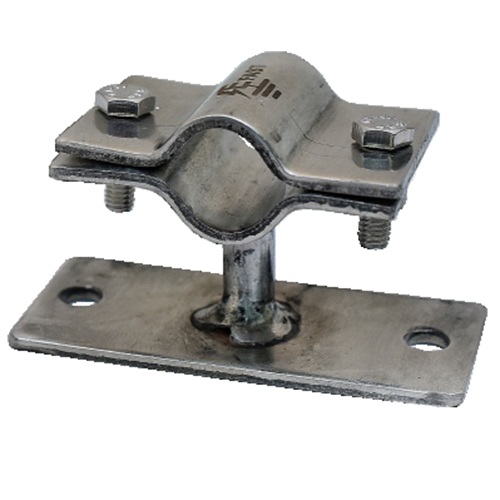

Side Wall Clamp - SS
Perfect for securing lightning conductors, shelving units, cabinets, construction materials, and HVAC systems to walls. Made from high-quality, corrosion-resistant materials, these clamps ensure stable, durable, and reliable installation for both residential and commercial applications. Easy to install, they provide a strong, slip-free grip to keep your projects safe and secure.

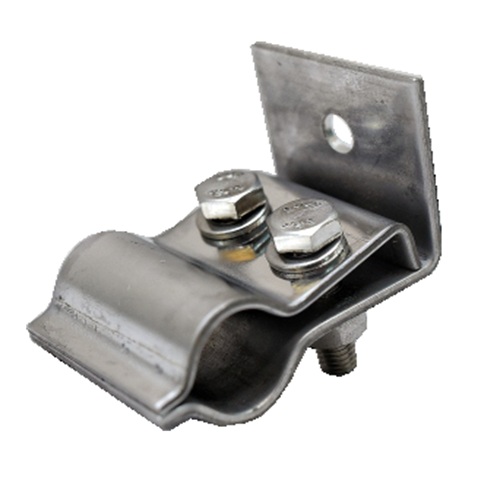

Air Termination Rod Clamp - SS
Air termination rod clamp is used to securely connect an air termination rod to a conductor in a lightning protection system. It ensures the effective and safe transfer of lightning current from the rod to the down conductor, ultimately protecting structures from lightning strikes.
P-Clip with Standing Seam Clamp - SS
A P clip with standing seam clamp made of stainless steel is used to secure cables or conductors to standing seam metal roofs. The stainless steel material provides durability and resistance to corrosion.

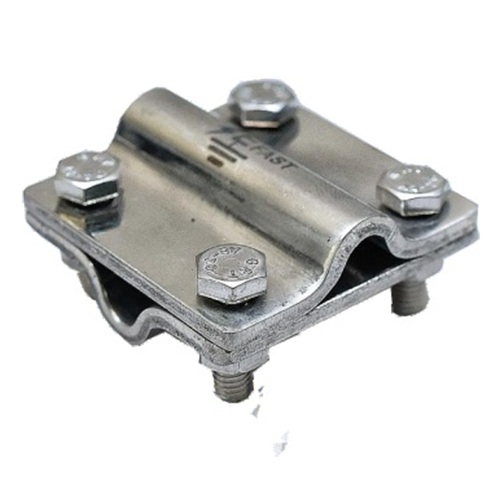

TXL connector (Round to Round) - SS
A TXL connector round-to-round made of stainless steel is used to join two round conductors in electrical or lightning protection systems.

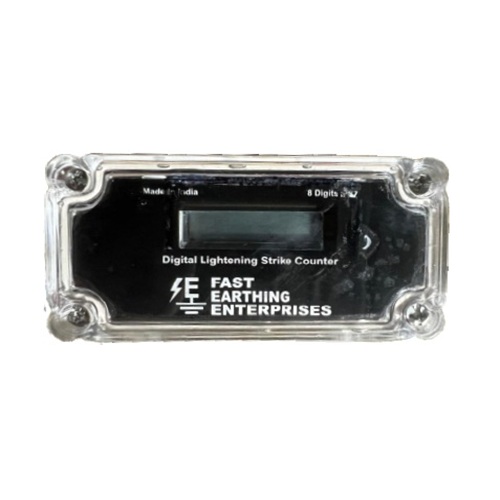

Lightning Event Counter
Lightning event counter is a device used to record and count the number of lightning strikes in a lightning protection system.
TXL connector 8mm to 16mm - SS
TXL connector is used to join flexible wires in electrical systems, ensuring a secure connection.

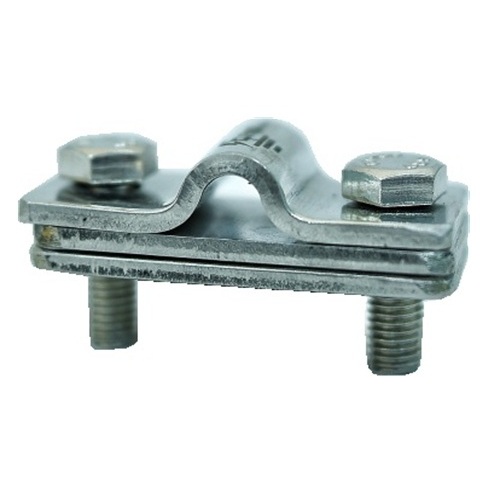

Disconnecting Link / Test Clamp - SS
A disconnecting link or test clamp made of stainless steel is used in lightning protection systems to create a removable connection point. It allows easy disconnection for maintenance, testing, or inspection.

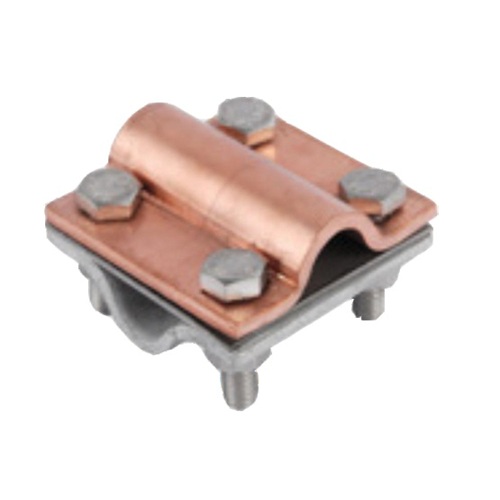

BI - Metallic Connector - SS
A BI metallic connector made of stainless steel is used to join or connect metal components or conductors, ensuring durability, strength, and resistance to corrosion.

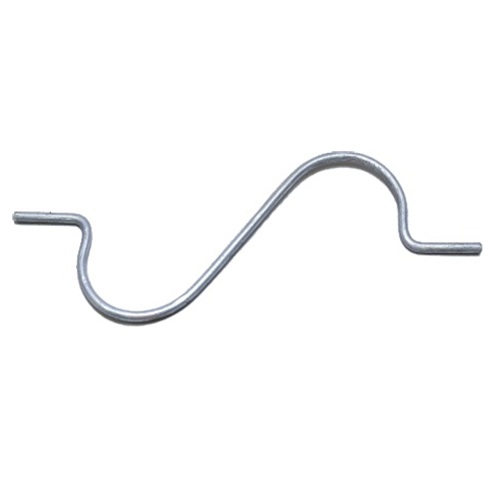

Expansion Piece
An expansion piece is used to accommodate expansion and contraction of materials due to temperature changes or environmental factors. It ensures connections remain secure and functional.

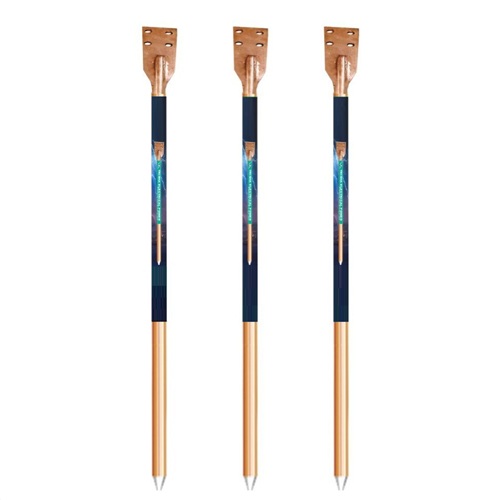

CB Earthing Rod
99.95% pure electrolytic grade copper is molecularly bonded to nickel low carbon steel core having high tensile strength. Nickel sealing is done for good adhesion and copper coating will not crack when bent or driven. Since copper coating is done after fabrication, the standard copper coating thickness is 250/100 microns.
