Earth Rod to Tape A Clamps

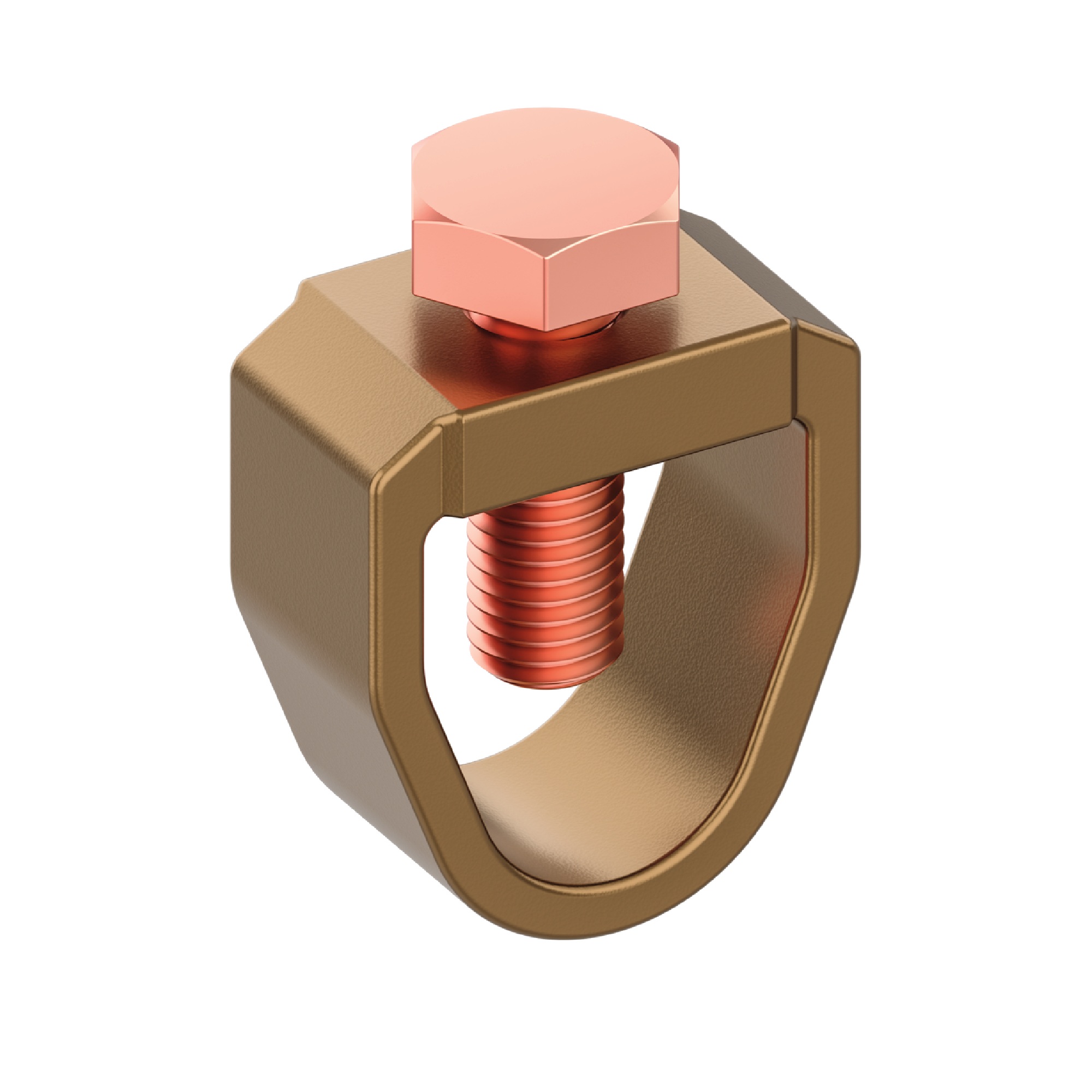

Earth Rod to Tape ‘A’ Clamps

These clamps are uesd to jioning earth rods to different sizes of copper tape.

CODE Earth Rod Shank Ø mm Maximum Tape Size mm L mm W mm H mm
SME-0097TAC 12.7 26 x 15 43 36 19
SME-0098TAC 12.7 32 x 15 42 44 18
SME-0099TAC 12.7 39 x 15 46 52 23
SME-0100TAC 14.2 26 x 14 43 36 19
SME-0101TAC 14.2 32 x 14 42 44 18
SME-0102TAC 14.2 39 x 14 46 52 23
SME-0103TAC 14.2 51 x 16 48 63 20
SME-0104TAC 15.0 26 x 13 43 36 19
SME-0105TAC 15.0 32 x 13 42 44 18
SME-0106TAC 15.0 39 x 13 46 52 23
SME-0107TAC 15.0 51 x 15 48 63 20
SME-0108TAC 16.0 26 x 12 43 36 19
SME-0109TAC 16.0 32 x 12 42 44 18
SME-0110TAC 16.0 39 x 12 46 52 23
SME-0111TAC 16.0 51 x 14 48 63 20
SME-0112TAC 17.2 26 x 11 43 36 19
SME-0113TAC 17.2 32 x 11 42 44 18
SME-0114TAC 17.2 39 x 11 46 52 23
SME-0115TAC 17.2 51 x 13 48 63 20
SME-0116TAC 20.0 26 x 18 54 38 22
SME-0117TAC 20.0 26 x 8 43 36 19
SME-0118TAC 20.0 32 x 8 42 44 18
SME-0119TAC 20.0 39 x 8 46 52 23
SME-0120TAC 20.0 51 x 10 48 63 20
SME-0121TAC 20.0 26 x 16 54 38 22
SME-0122TAC 25.0 26 x 11 54 38 22
Material: High Copper Alloy with M10 x 25mm Phosphor Bronze Set Screw
O Clamps

‘O’ Clamps

These clamps are used for joining earth rods to different sizes of stranded copper conductor. The clamps have a high resistance to corrosion and are mechanically strong to ensure a lasting connection.

CODE Earth Rod Shank Ø mm Maximum Tape Size mm L mm W mm H mm
SME-0136OC 9.5 6 - 35 30 20 15
SME-0137OC 12.7 6 - 35 36 28 18
SME-0138OC 12.7 35 - 70 41 26 20
SME-0139OC 14.2 6 - 16 36 28 18
SME-0140OC 14.2 16 - 70 41 26 20
SME-0141OC 14.2 35 - 150 48 30 18
SME-0142OC 15.0 6 - 16 36 28 18
SME-0143OC 15.0 16 - 70 41 26 20
SME-0144OC 15.0 25 - 150 48 30 18
SME-0145OC 16.0 6 - 70 41 26 20
SME-0146OC 16.0 16 - 150 48 30 18
SME-0147OC 17.2 6 - 95 48 30 18
SME-0148OC 20.0 16 - 95 48 30 18
Material: Brass with M10 x 25mm Phosphor Bronze Set Screw
U Bolt Clamps Vertical Stranded Cable

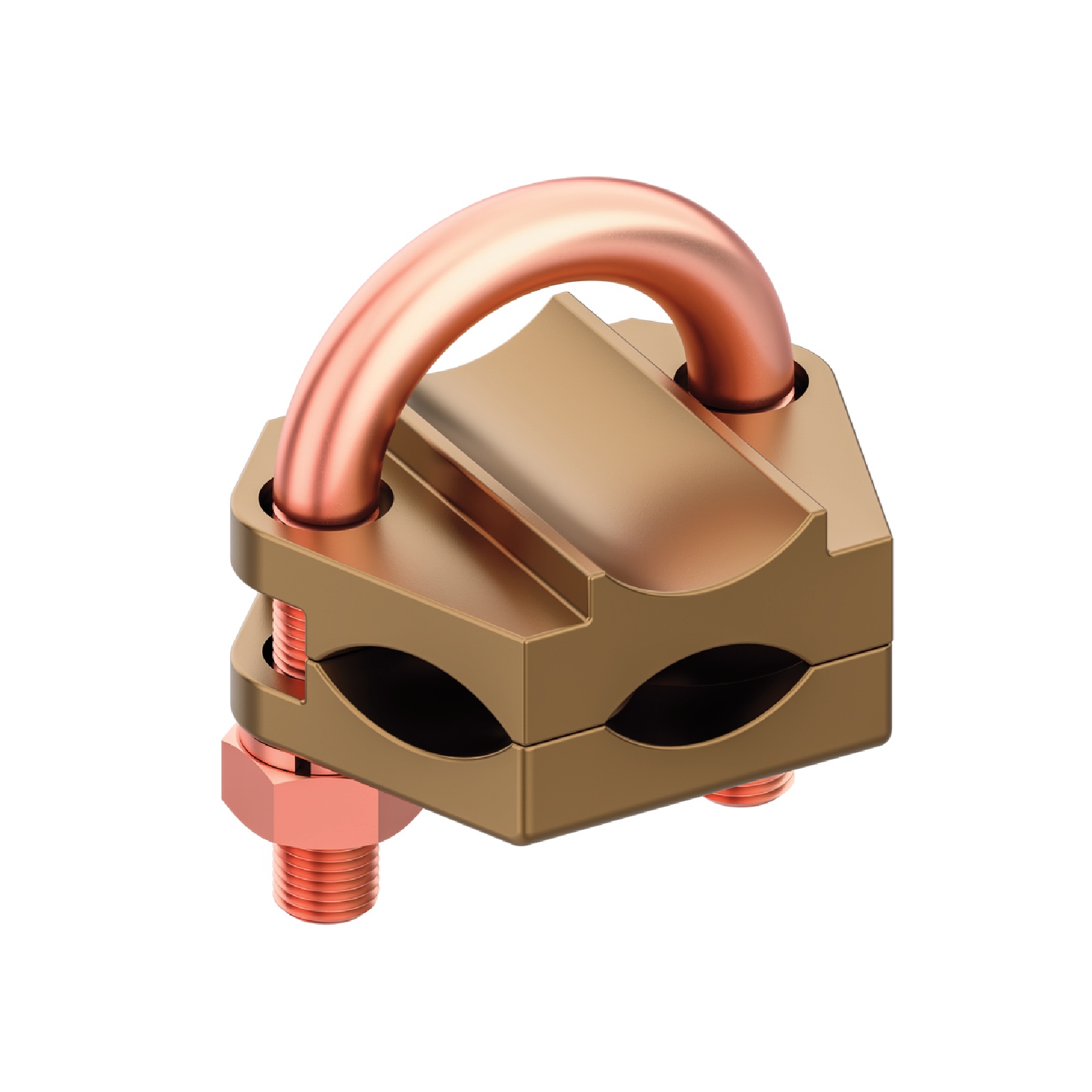

‘U’ Bolt Clamps

Double Plate Type for Vertical Stranded Cables
Used to connect stranded cables in a vertical and horizontal position on the rod.

CODE Maximum Rod Ø mm Conductor Range mm2 L mm W mm H mm
SME-0159GUVUBC 16 16 - 150 57 52 40
SME-0160GUVUBC 16 150 - 300 69 70 40
SME-0161GUVUBC 20 16 - 70 57 52 40
SME-0162GUVUBC 20 70 - 300 69 70 40
SME-0163GUVUBC 25 16 - 70 75 87 55
SME-0164GUVUBC 25 185 - 300 89 70 55
Material: High Copper Alloy plates with M10 threaded Copper ‘U’ Bolt.
Universal Beam Clamp

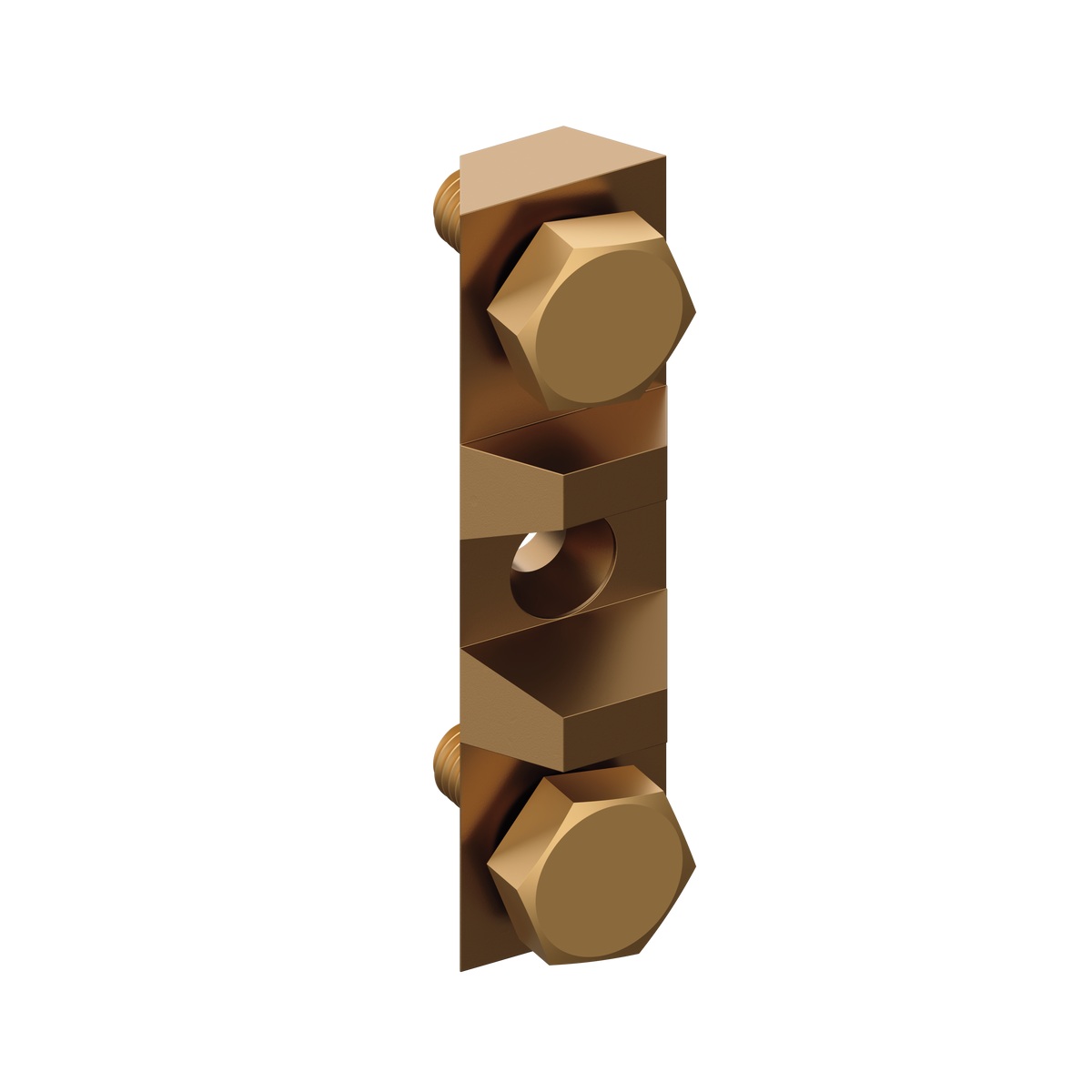

Universal Beam Clamp

This Universal Beam Clamp is a unique product as it is designed to bond 25x3mm copper tape, 50sqmm and 70sqmm stranded cable as well as 8mm solid circular conductor to steel beams and RSJ’s of up to15mm thick.

CODE Conductor Range mm2 Conductor Size mm L mm W mm H mm H1 mm
SME-0175UB 50 - 70 25 x 3 80 43 35 18
Material: High Copper Alloy with Stainless Steel Bolts.
Pipe Clamps

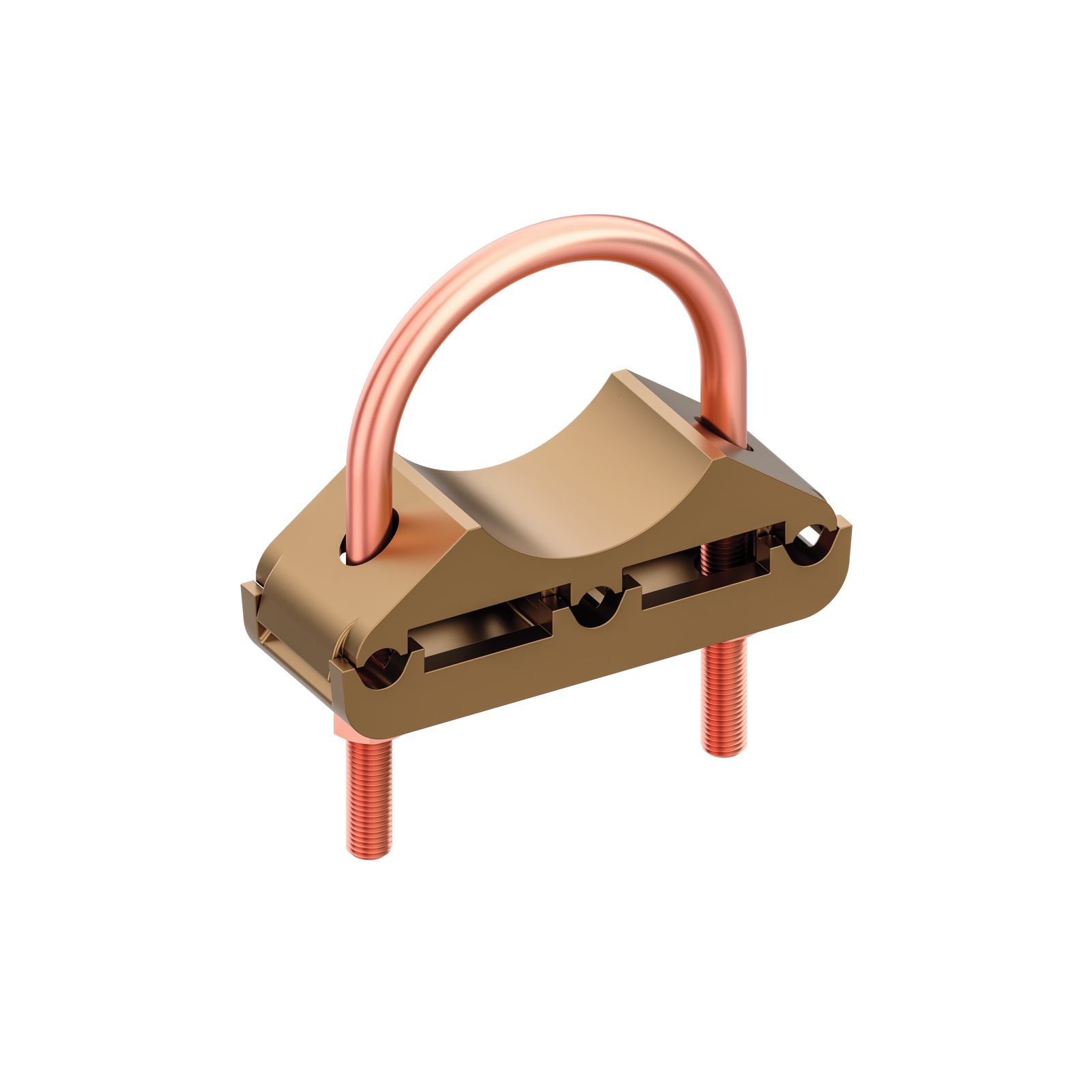

Pipe Clamps

These heavy duty pipe clamps are ideal for bonding and connecting cable conductor to large diameter pipework’s. They are suitable for use with copper, steel or stainless steel pipes.

CODE Pipe Diameter Conductor Range mm2
SME-0189PC ½” - 1” (13 - 25mm) 25 - 95
SME-0190PC 1 ¼” - 2” (32 - 50mm) 25 - 95
SME-0191PC 2 ½” - 3 ½” (65 - 90mm) 25 - 95
SME-0192PC 4” - 5” (100 - 125mm) 25 - 95
SME-0193PC 6” (150mm) 25 - 95
SME-0194PC 8” (200mm) 25 - 95
SME-0195PC 10” (250mm) 25 - 95
SME-0196PC 12” (300mm) 25 - 95
Material: Tinned Bronze
Tower Earth Clamps

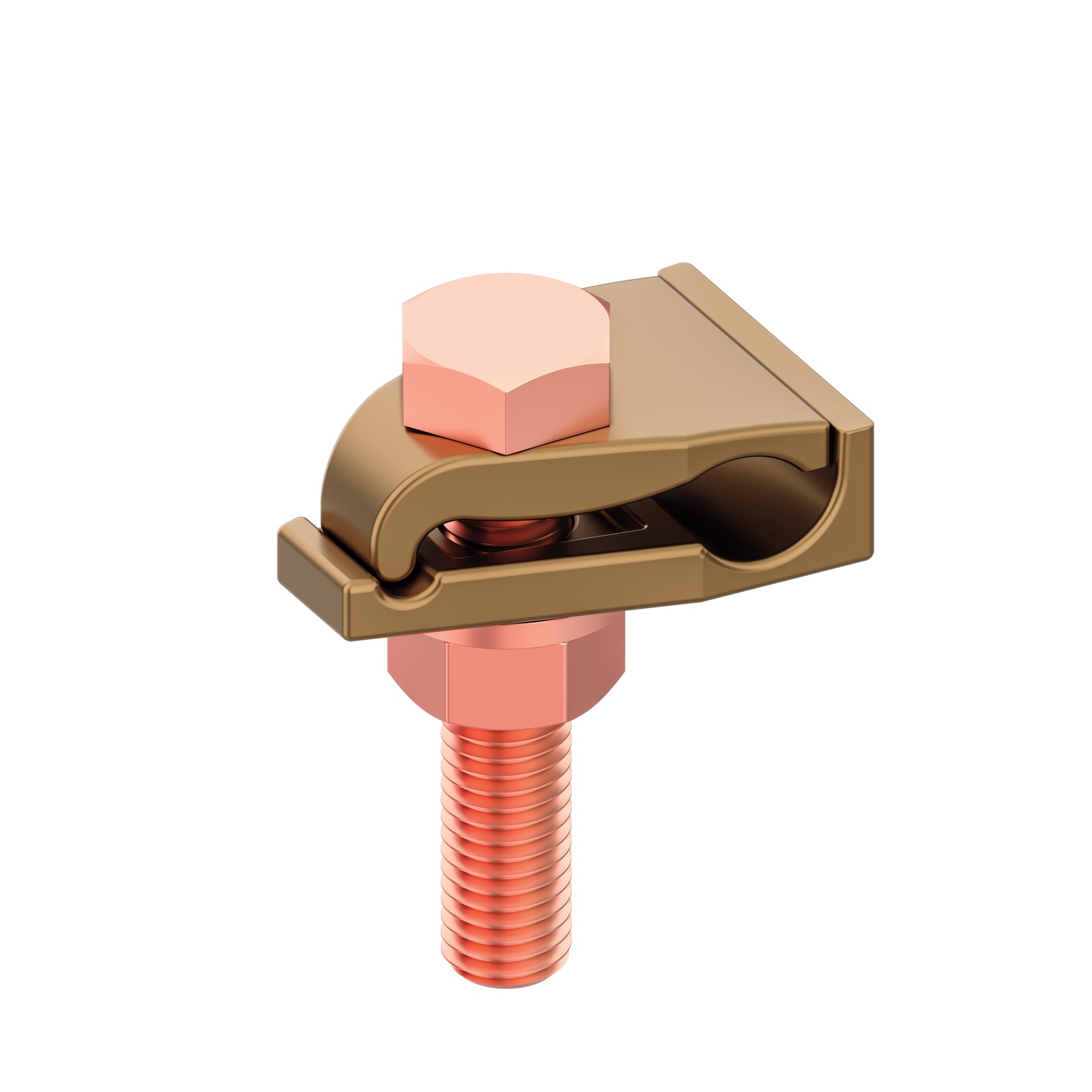

Tower Earth Clamps

Tower earth clamps are used for bonding copper conductors onto steel surfaces.

CODE Conductor Range mm2 L mm W mm H mm
SME-0197TEC 16 - 70 45 30 17
SME-0198TEC 70 - 120 48 35 22
SME-0199TEC 120 - 185 55 40 28
SME-0200TEC 185 - 240 63 45 35
SME-0201TEC 240 - 300 70 53 42
Material: High Copper Alloy
Earth Rod to Cable G Clamps

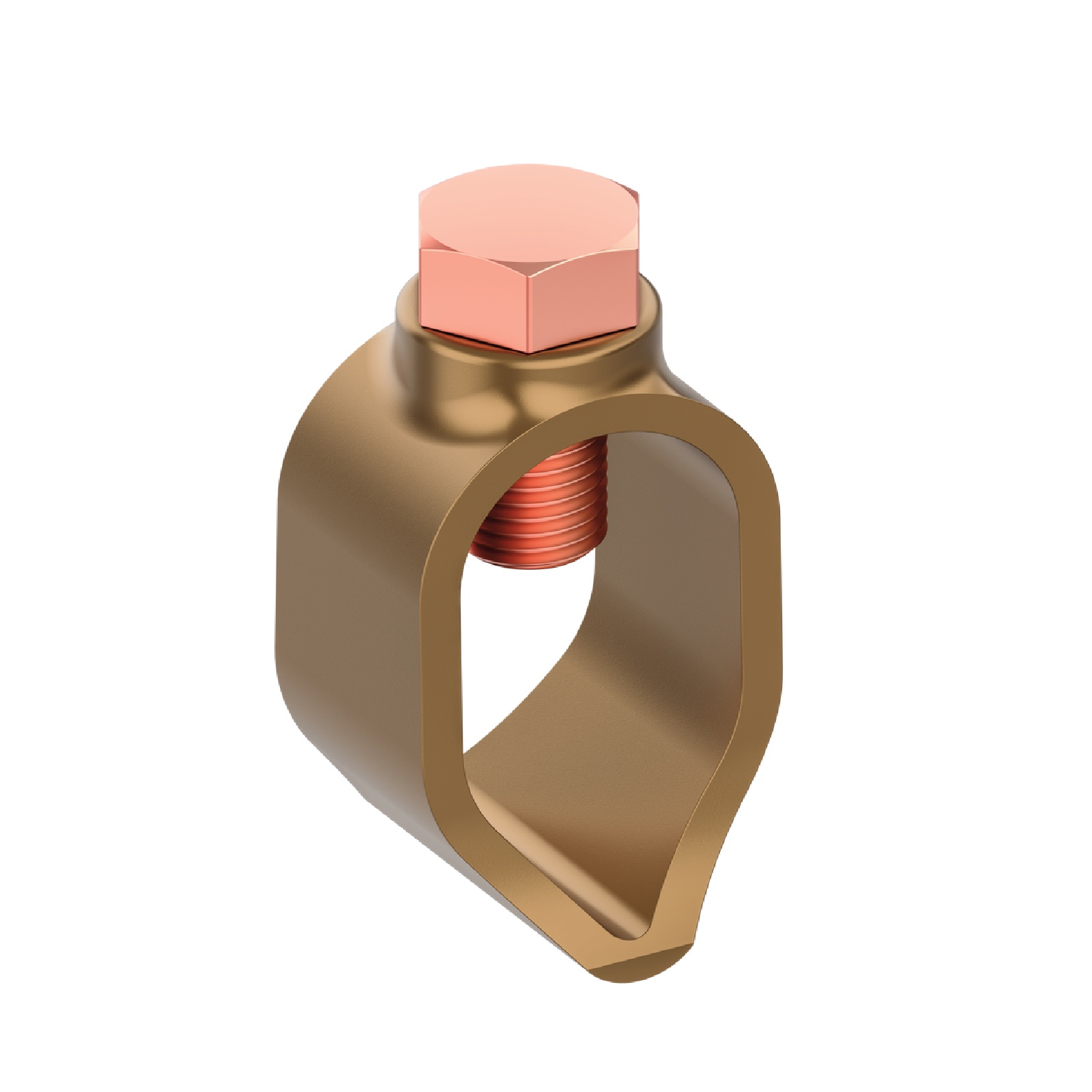

Earth Rod to Cable ‘G’ Clamps

These clamps are used for joining earth rods to different sizes of stranded copper conductor. The clamps have a high resistance to corrosion and are mechanically strong to ensure a lasting connection.

CODE Earth Rod Shank Ø mm Maximum Tape Size mm L mm W mm H mm
SME-0123CGC 9.5 6 - 35 30 20 15
SME-0124CGC 12.7 6 - 35 36 28 18
SME-0125CGC 12.7 35 - 70 41 26 20
SME-0126CGC 14.2 6 - 16 36 28 18
SME-0127CGC 14.2 16 - 70 41 26 20
SME-0128CGC 14.2 35 - 150 48 30 18
SME-0129CGC 15.0 6 - 16 36 28 18
SME-0130CGC 15.0 16 - 70 41 26 20
SME-0131CGC 15.0 25 - 150 48 30 18
SME-0132CGC 16.0 6 - 70 41 26 20
SME-0133CGC 16.0 16 - 150 48 30 18
SME-0134CGC 17.2 6 - 95 48 30 18
SME-0135CGC 20.0 16 - 95 48 30 18
Material: High Copper Alloy with M10 x 25mm Phosphor Bronze Set Screw
U Bolt Clamps

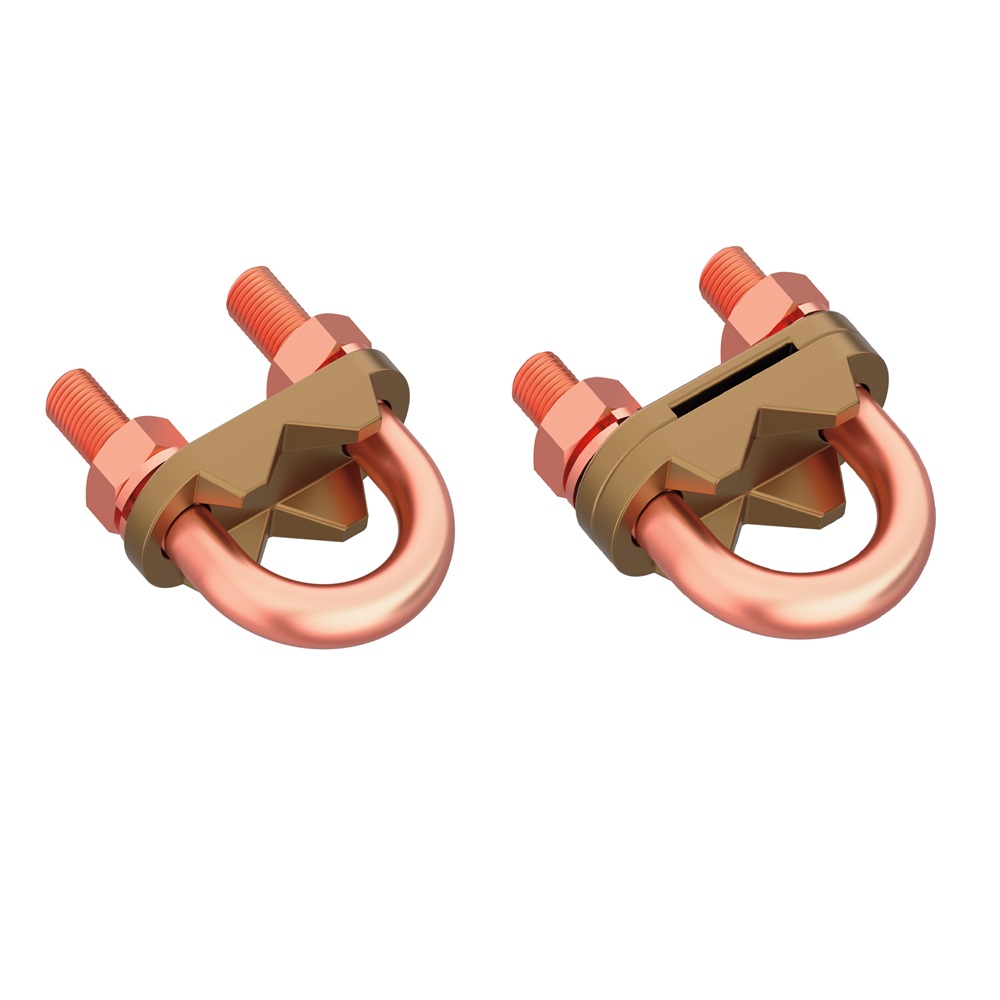

‘U’ Bolt Clamps

This versatile range of ‘U’ bolt clamps can be used to connect flat tapes and stranded cables to earth rods, reinforcing bars (rebar), hand rails etc.

Single Plate Type for Horizontal Flat Tapes
Used to connect flat tapes in a horizontal position on the rod.

CODE Maximum Rod Ø mm Hole Centres mm L mm W mm H mm
SME-0149SPUBC 16 30 58 62 33
SME-0150SPUBC 25 37 72 62 33
SME-0151SPUBC 31 41 82 68 33
SME-0152SPUBC 38 46 90 75 33
SME-0153SPUBC 50 63 95 90 33
Material: High Copper Alloy plate with M10 threaded Copper ‘U’ Bolt.

Double Plate Type for Vertical Flat Tapes
Used to connect flat tapes in a vertical position on the rod.

CODE Maximum Rod Ø mm Tape Width mm L mm W mm H mm
SME-0154DPUBC 16 25 58 62 33
SME-0155DPUBC 25 25 73 62 33
SME-0156DPUBC 31 25 85 68 33
SME-0157DPUBC 38 25 80 75 33
SME-0158DPUBC 50 25 103 90 33
Material: High Copper Alloy plates with M10 threaded Copper ‘U’ Bolt.
U Bolt Rod to 3 Parallel Cable Clamp

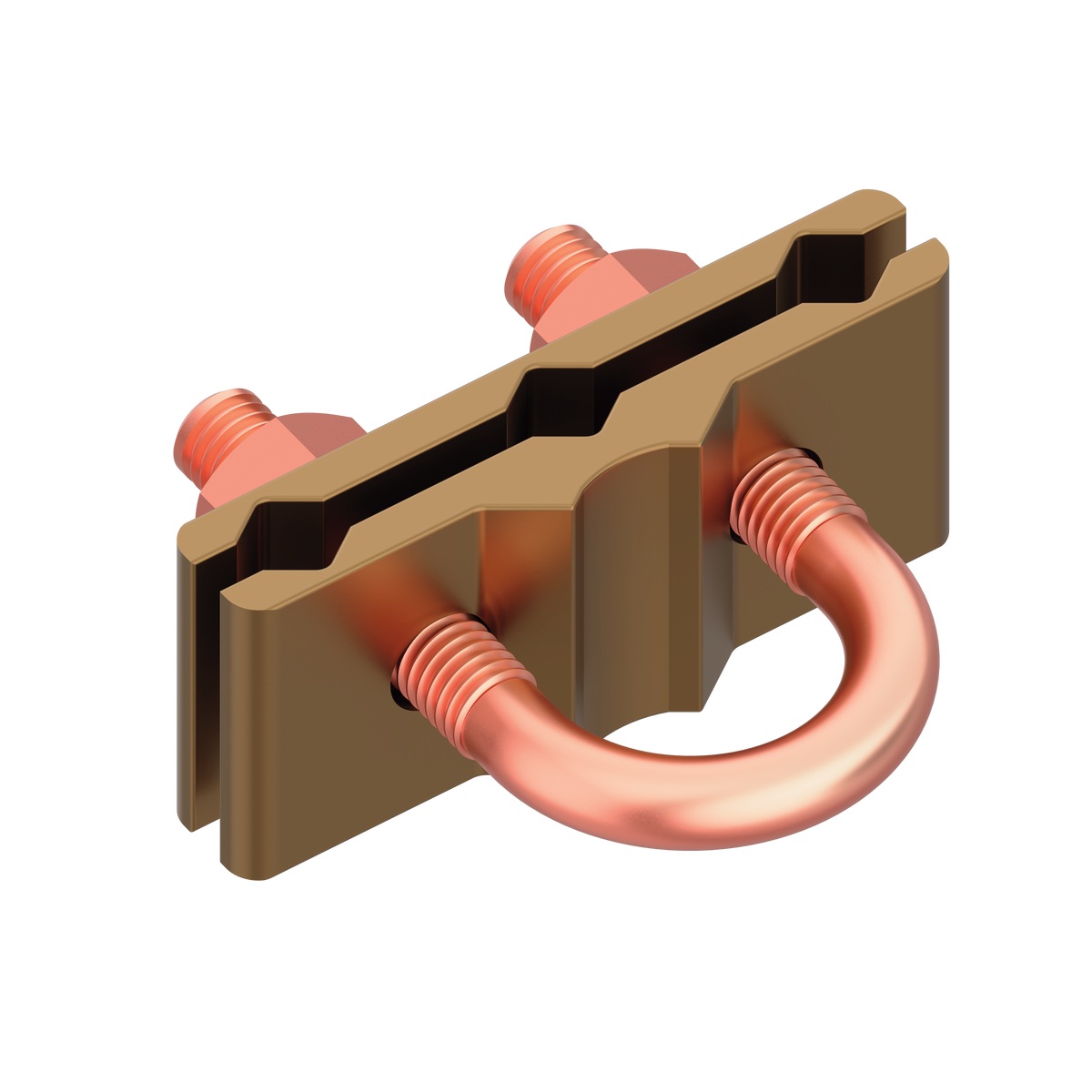

'U' Bolt Rod to 3 parallel cable clamp

These clamps are to ensure the connection between rebar or earth rod with cables

CODE Rod/Rebar diameter mm Conductor Range mm2
SME-0165P3UBC 14 - 25 16 - 70
SME-0166P3UBC 14 - 25 50 - 150
SME-0167P3UBC 14 - 25 150 - 500
Material: High Copper Alloy.
Stainless Steel Rebar Clamps

Stainless Steel Rebar Clamps

Rebar clamps are used to connect rebar to rebar or rebar to conductor.

CODE Maximum Rebar Ø mm Rebar Range Ø mm L mm W mm
SME-0183SSRC 12 8 - 12 50 22
SME-0184SSRC 16 16 - 16 59 22
SME-0185SSRC 20 20 - 20 68 26
SME-0186SSRC 25 25 - 25 81 31
SME-0187SSRC 32 32 - 32 98 39
SME-0188SSRC 40 40 - 40 120 48
Material: Stainless Steel
Parallel Groove Clamps

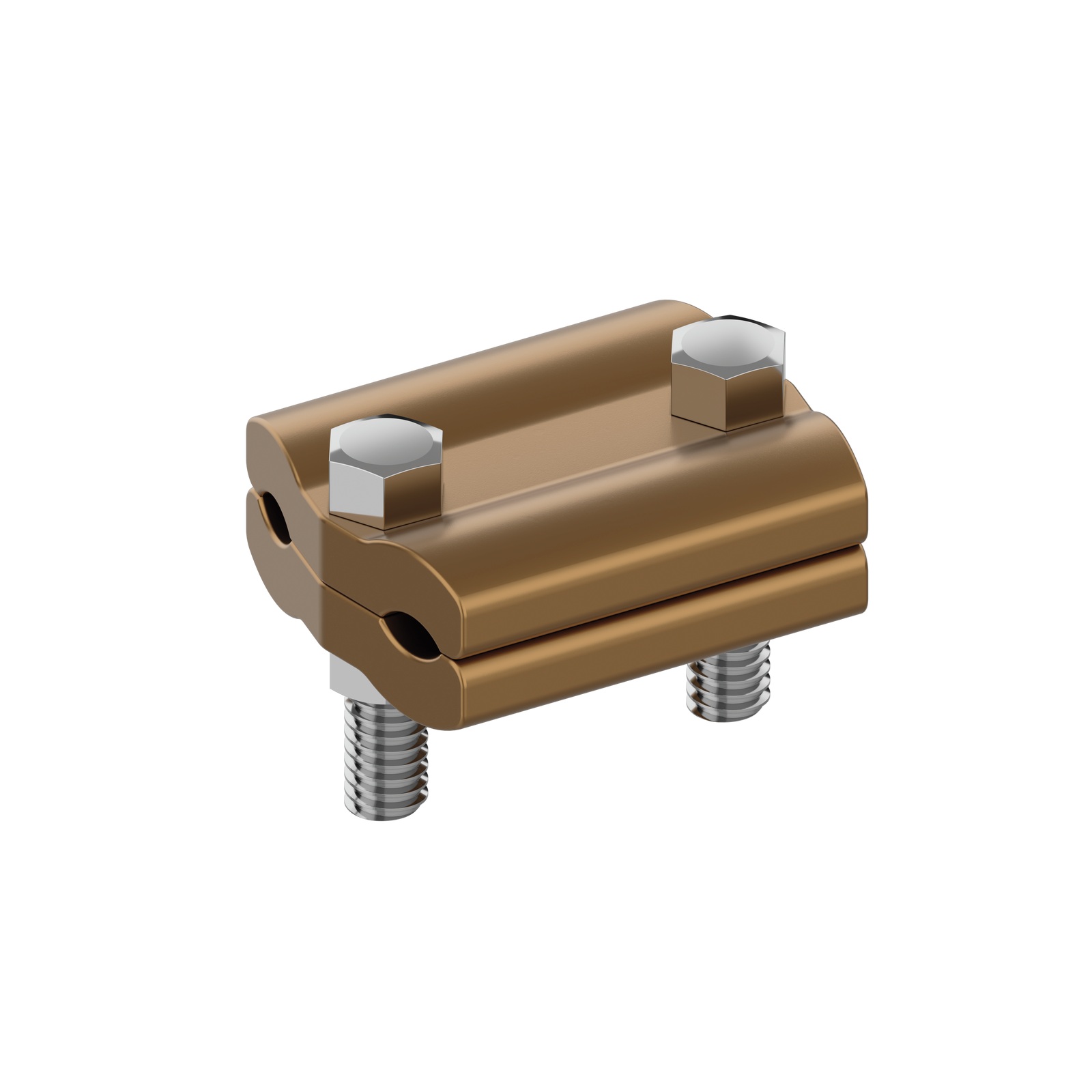

Parallel Groove Clamps

Parallel Groove Clamps, for stranded copper cable connections, are manufactured from high-strength, corrosion-resistant copper alloy and assembled with two stainless steel set screws.

CODE Conductor Range mm2 L mm W mm H mm Set Screw
SME-0202PGC 25 - 70 50 40 7 M8 x 35mm
SME-0203PGC 70 - 95 54 45 8.5 M10 x 45mm
SME-0204PGC 95 - 185 65 57 12.5 M10 x 55mm
SME-0205PGC 185 - 240 78 71 14 M10 x 55mm
SME-0206PGC 240 - 300 94 85 16 M10 x 60mm
Material: High Copper Alloy
Reinforcing Conductor Clamps

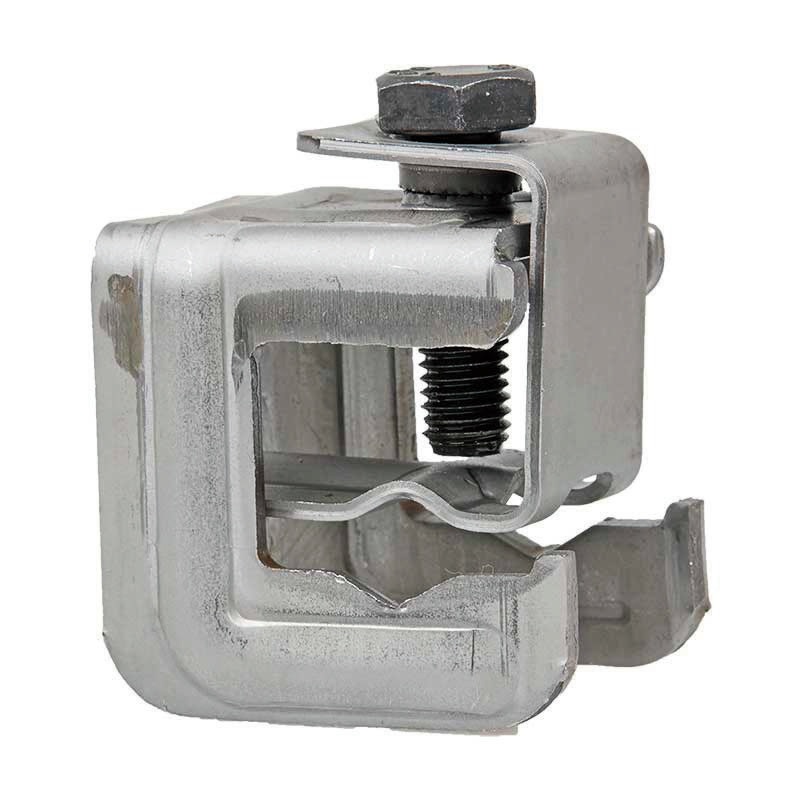

Reinforcing Conductor Clamps

Reinforcing Conductor Clamps are used to connect flat and circular conductor to reinforcing bar

CODE Rebar Size mm2 Circular Conductor Flat Conductor mm
SME-0249RCC 6 - 20 NA 25x3-30x3.5
SME-0250RCC 6- -20 8to10 mm dia 25x3-30x3.5
SME-0251RCC 25 8to10 mm dia 25x3-30x3.5
SME-0252RCC 30 NA 25x3-30x3.5
Material: Tinned Bronze
