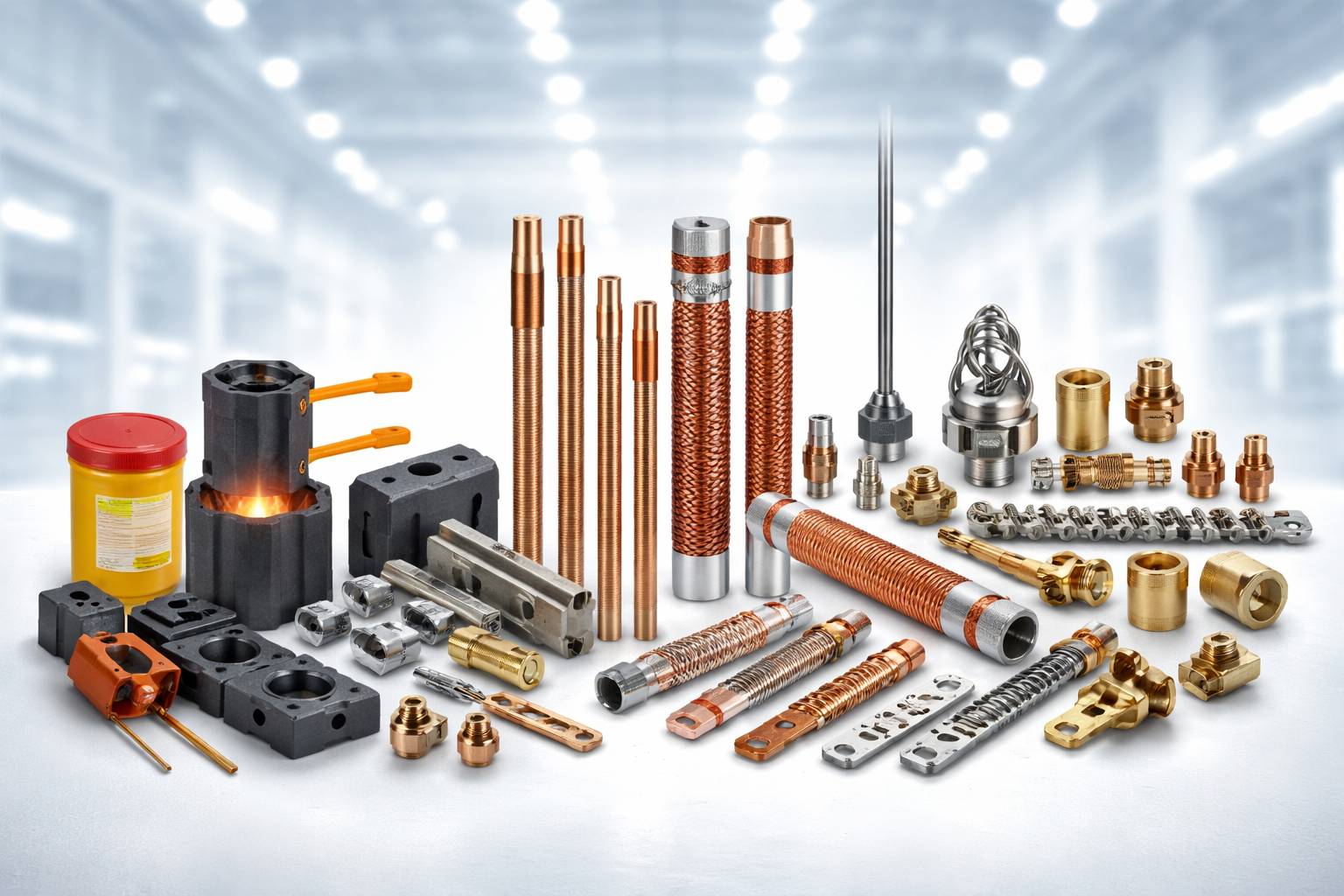

FAST EARTHING is a Manufacturer of Exothermic Welding System, Copper Bonded Rod, Copper Braid Flexible and Laminated and contract manufacturer for the entire range of Electrical & Hardware Fittings and Accessories and is one of the leading exporters of a wide range of:

Any kind of special products made from Brass, Copper, Gunmetal, Bronze, Cast Iron, Malleable Iron can be developed, manufactured and supplied exactly as per customer specifications. The list of products is exhaustive and being a dynamic group we are always keen on adding new products to our range.

As one of India's most valuable and respected corporations, FAST EARTHING has earned a good reputation amongst our international customers with its Quality Assurance, On-Time Delivery, and High Customer Satisfaction.

Fast Earthing

Quality Standards & Certifications

To ensure consistent product quality, we work within a quality assurance system that is approved with:

• UL 467 (Grounding and Bonding Equipment)
• ISO 9001:2015
• ISO 14001:2015
• RoHS Compliance
• CE Compliance

Strict quality checks are carried out at different stages of manufacturing, and only that material which passes stringent norms finds its way into the market around the globe.

FAST EARTHING Exothermic welding is a simple, cost-effective process used for joining similar metals like copper to copper and dissimilar metals like copper to steel. Unlike mechanical or compression connections, an exothermic weld creates a permanent and irreversible joint. The homogeneous structure formed after cooling ensures that all components fuse into a single solid mass, delivering the highest quality connection required for safe and reliable electrical systems.

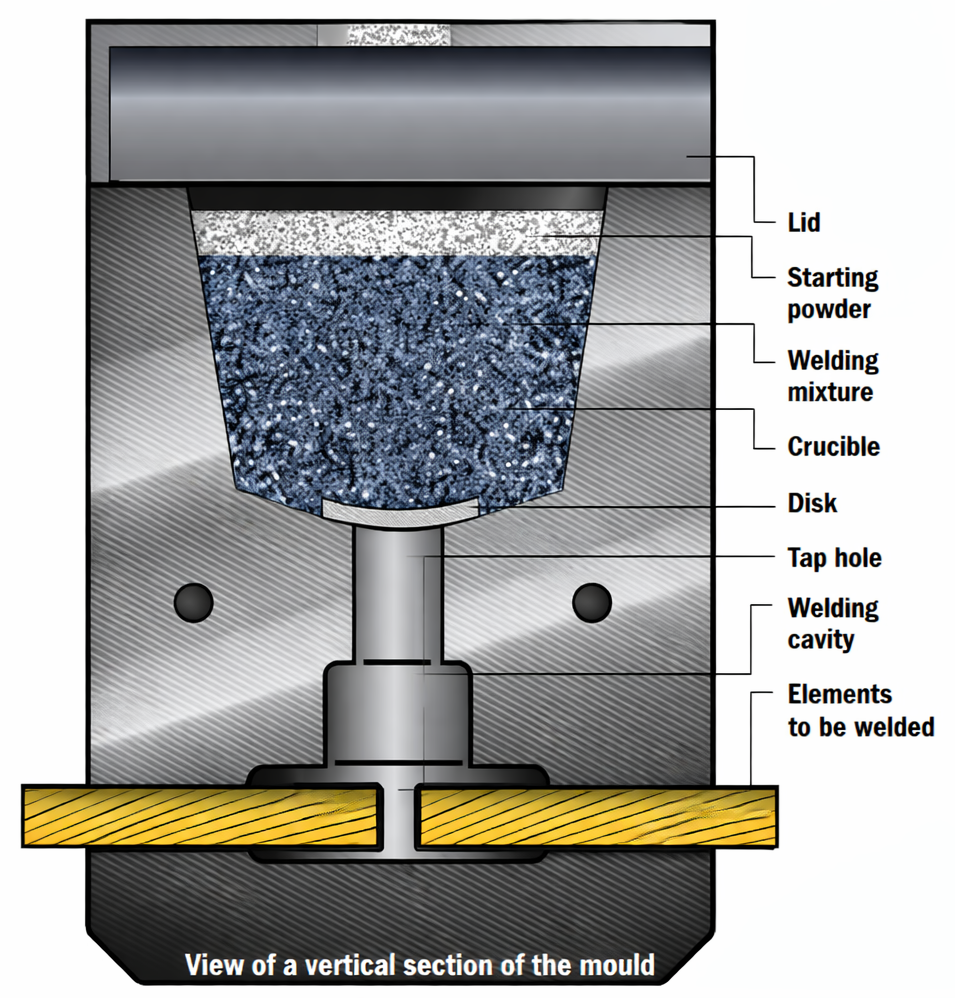

The FAST EARTHING Exothermic welding process utilizes an aluminothermic reaction of a copper thermite composition to generate the required heat for welding. This process is entirely self-sufficient and does not require any external heat source. The reaction occurs inside a specially designed graphite mould suited to the specific joint configuration.

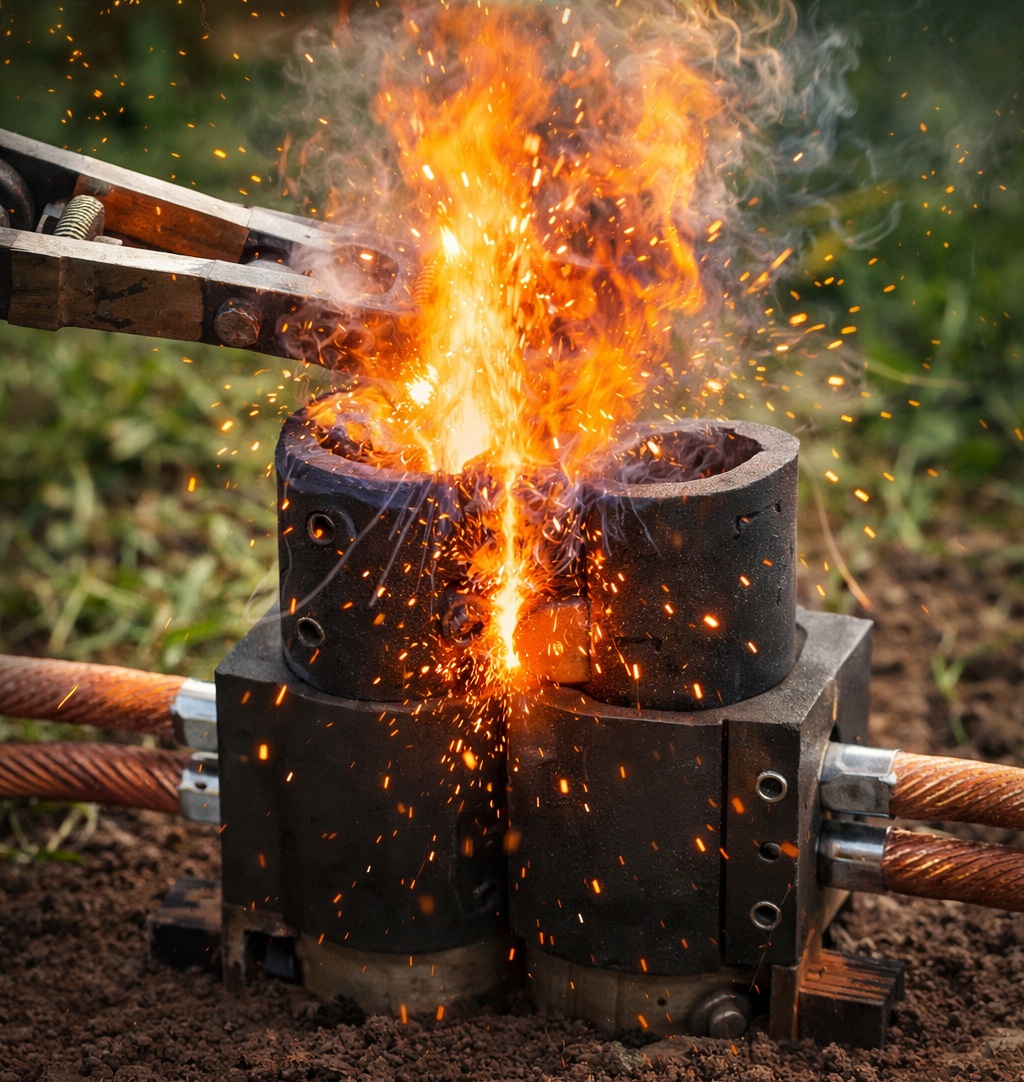

Once the weld powder is ignited using a flint gun or a battery-powered igniter, it produces molten metal that flows through the mould and surrounds the conductors. This results in a strong, permanent, and highly conductive bond between the components.

What is Fast Weld?

The Fast Weld process uses a proven method to achieve molecular-level bonding of conductors. It involves the reduction of copper oxide using aluminum, producing aluminum oxide along with intense heat that generates molten copper for the connection.

This reaction is safely contained within a graphite mould designed for specific conductor types. These moulds offer a portable, efficient, and economical solution for creating high-quality, durable electrical connections.
