Fast Earthing
Making an Fast Earthing Connection

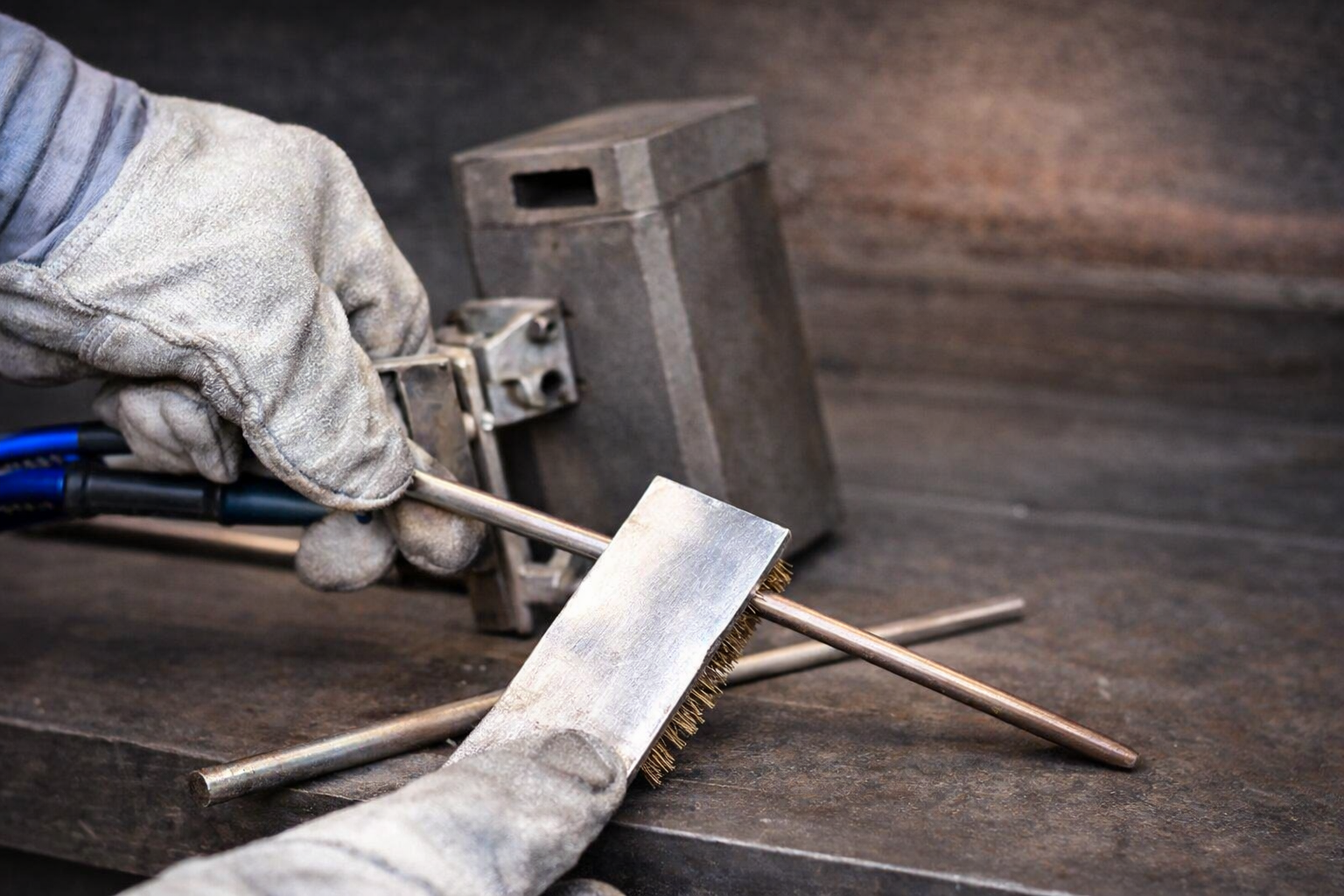

STEP 1
Clean the conductor/item to be welded

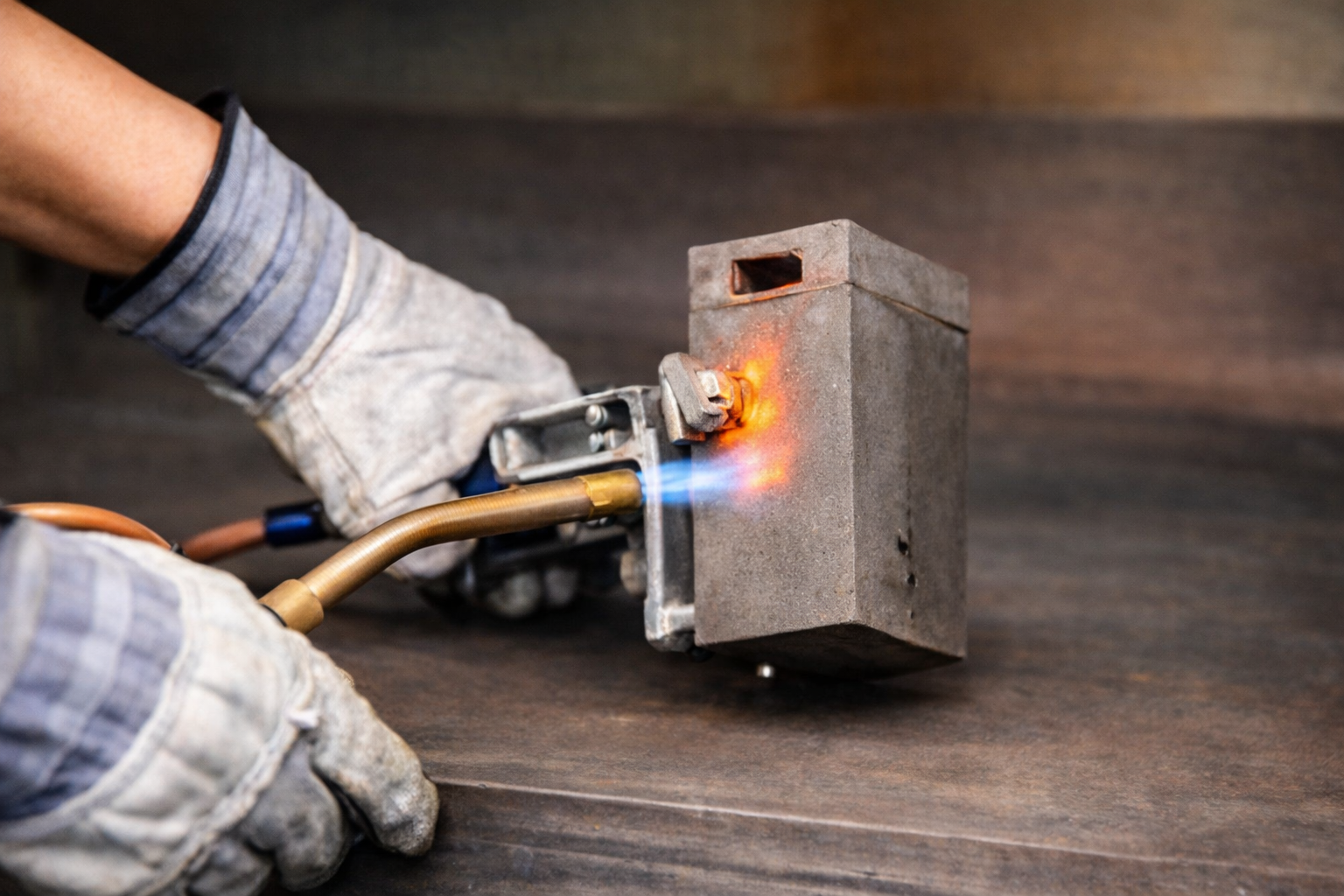

STEP 2
Use a flame torch or any other heating apparatus to heat the mould

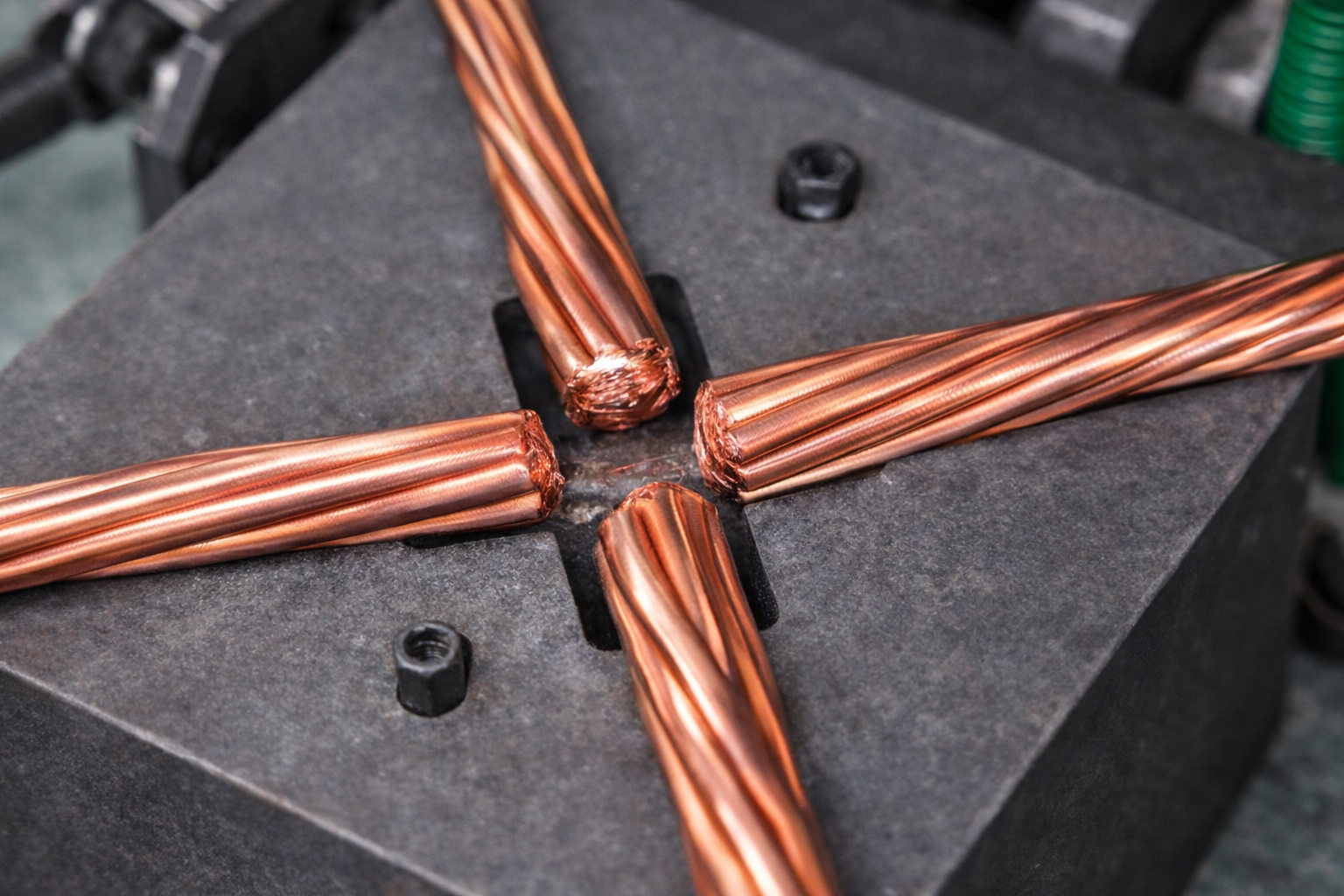

STEP 3
Insert the conductors into the mould. Close the handle clamp & lock the mould.

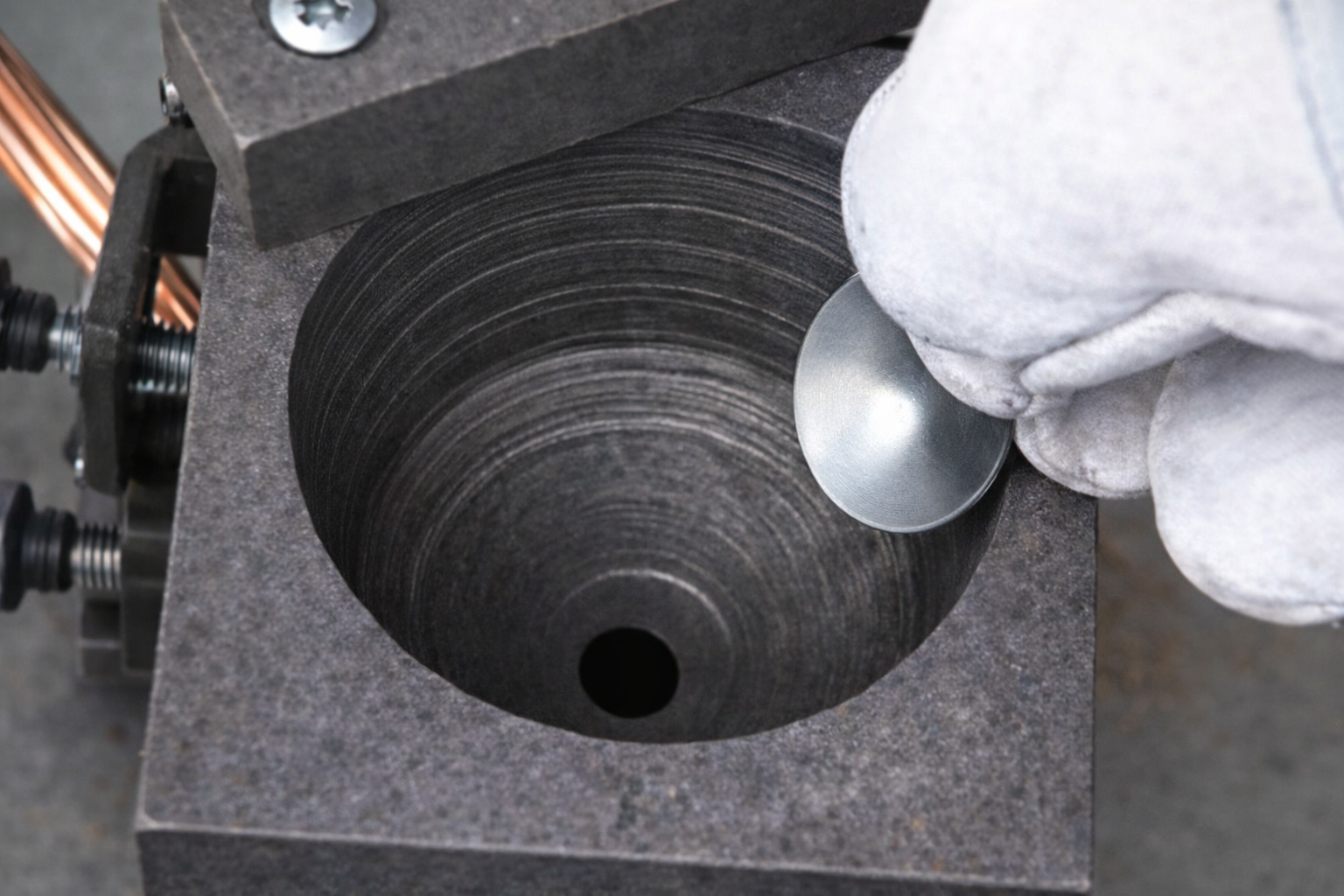

STEP 4
Insert the steel disc into the mould.

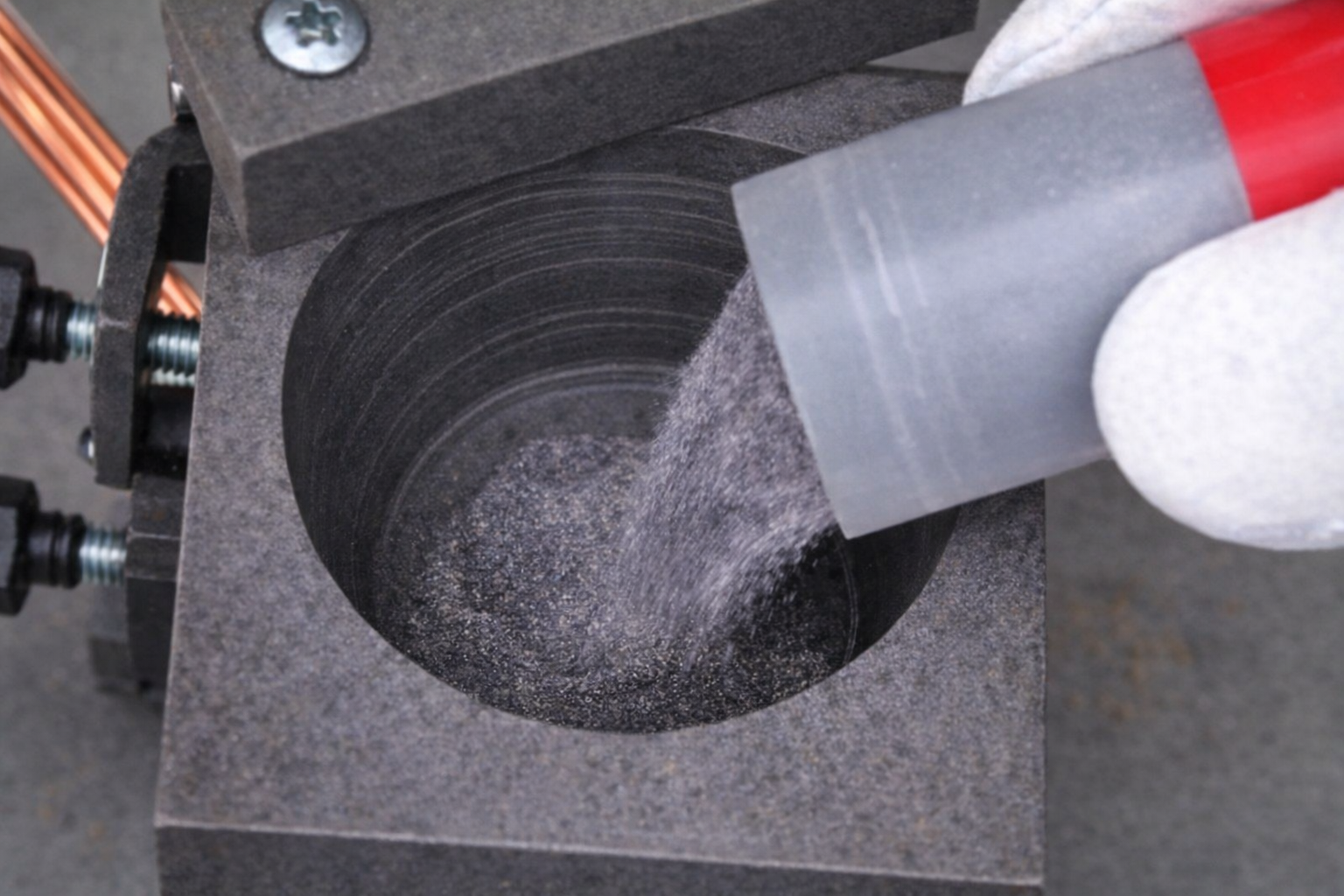

STEP 5
Pour the weld powder into the mould. Put some starting powder on top of the welding powder & some on the lid.

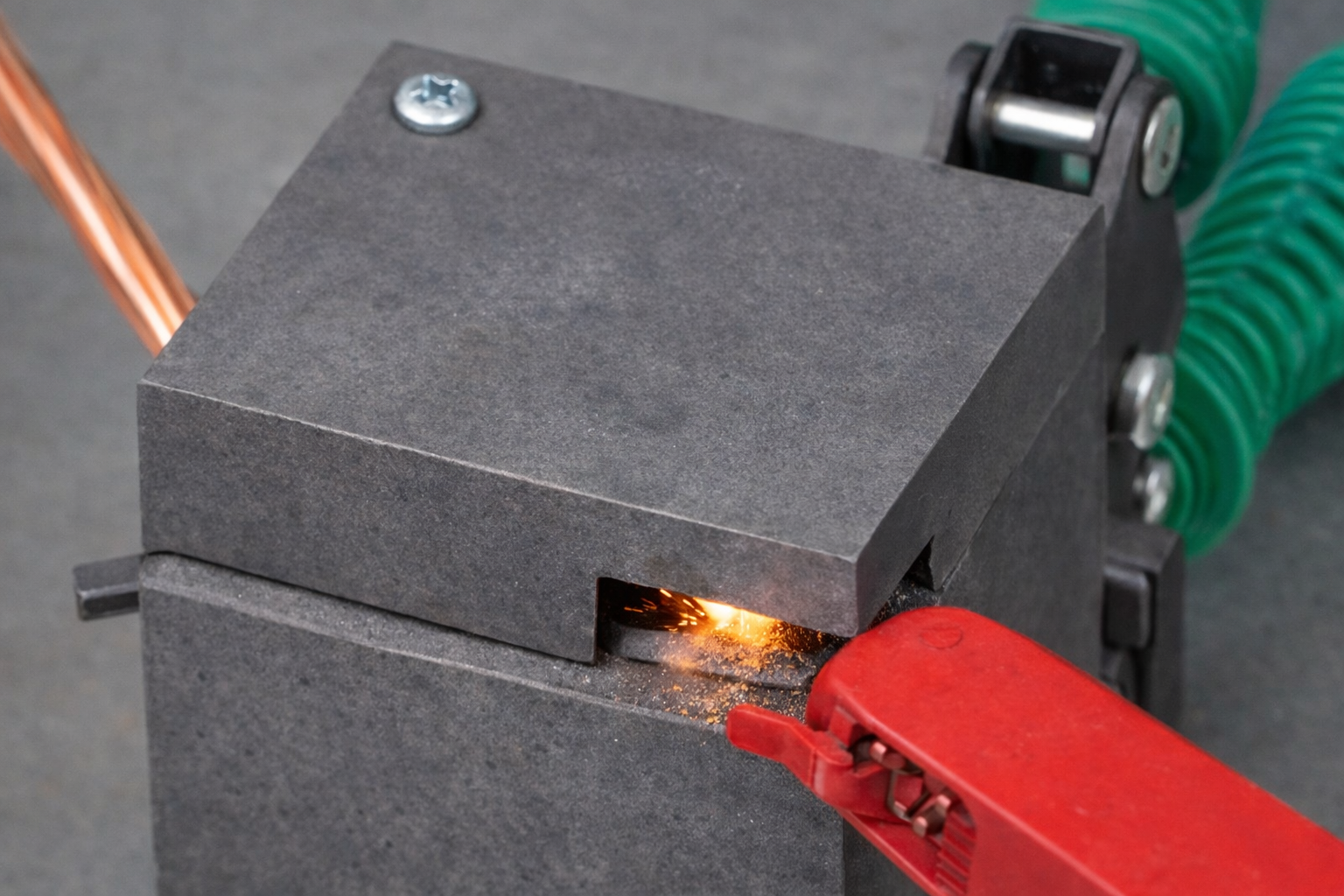

STEP 6
Close the lid & ignite the starting powder using an igniting device.

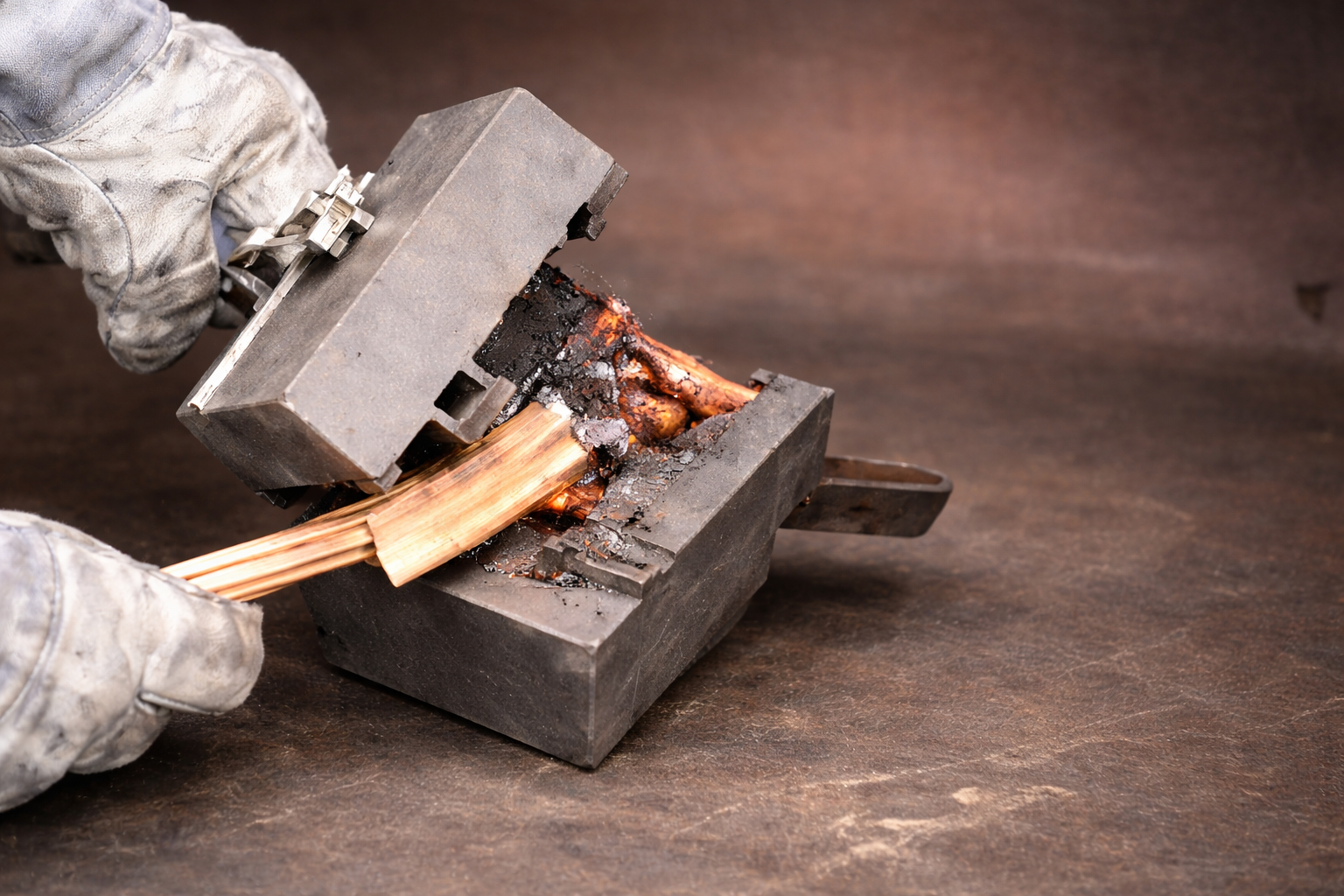

STEP 7
Wait for 2–3 minutes, open mould, remove connection & clean before next connection.

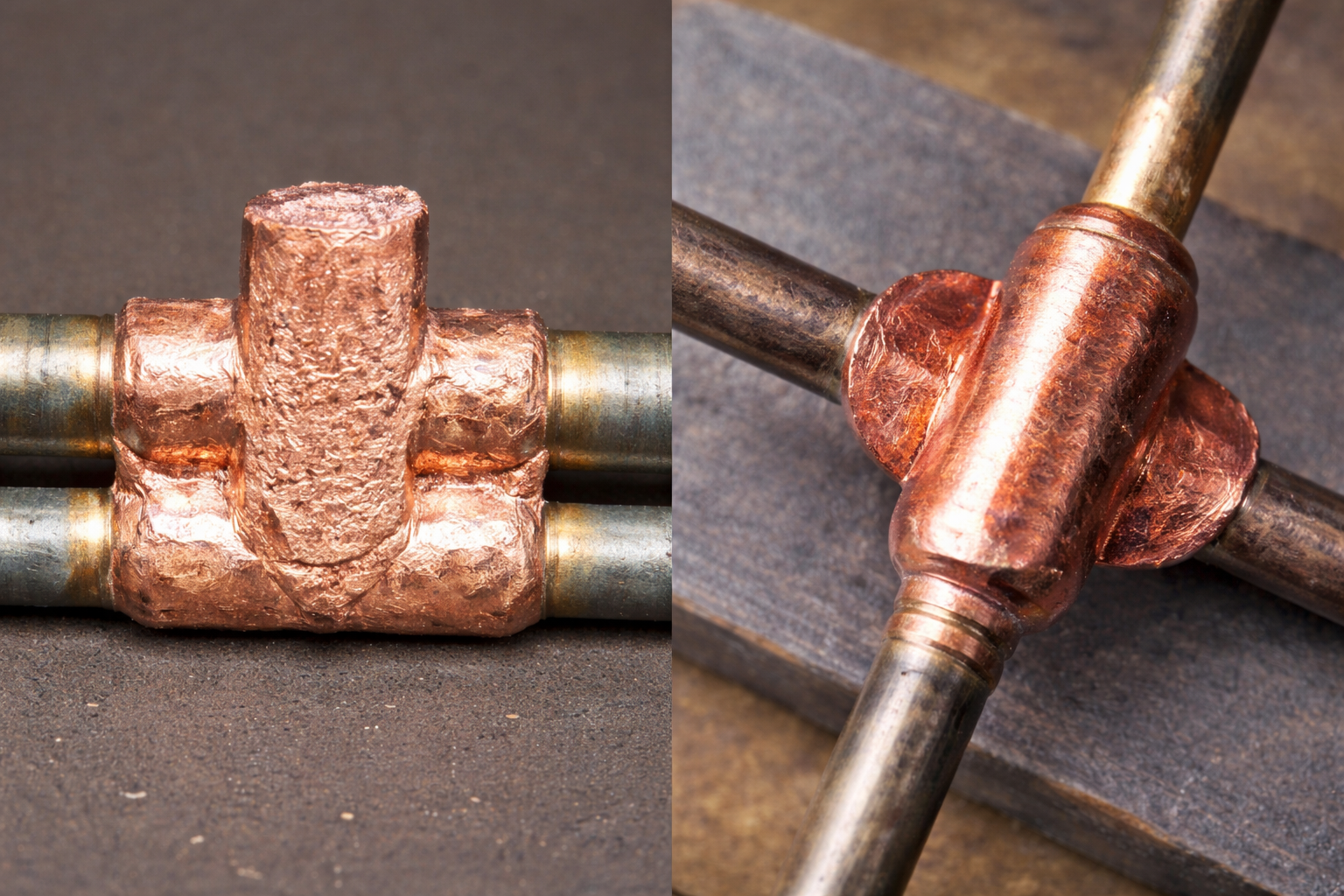

STEP 8
A completed AI Earthing connection.
